PDT10016

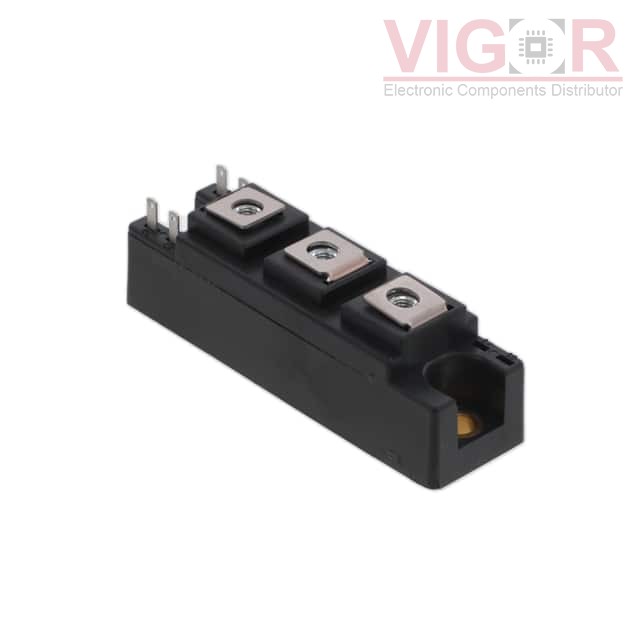

Image is for reference,
please contact us to get the real picture

Part No :: PDT10016

Manufacturer: KYOCERA Corporation

Description: THYRISTOR MODULE PHASE LEG T+T 1

Catalog: Thyristors - SCRs - Modules

DataSheet: PDT10016 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of PDT10016 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PDT10016 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Structure:	Series Connection - All SCRs
Number of SCRs, Diodes:	2 SCRs
Voltage - Off State:	1.6 kV
Current - On State (It (AV)) (Max):	100 A
Current - On State (It (RMS)) (Max):	156 A
Voltage - Gate Trigger (Vgt) (Max):	2.5 V
Current - Gate Trigger (Igt) (Max):	100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):	2000A @ 50Hz
Current - Hold (Ih) (Max):	50 mA
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	Module

Please confirm the specifications of the products when ordering.
