NTE5584

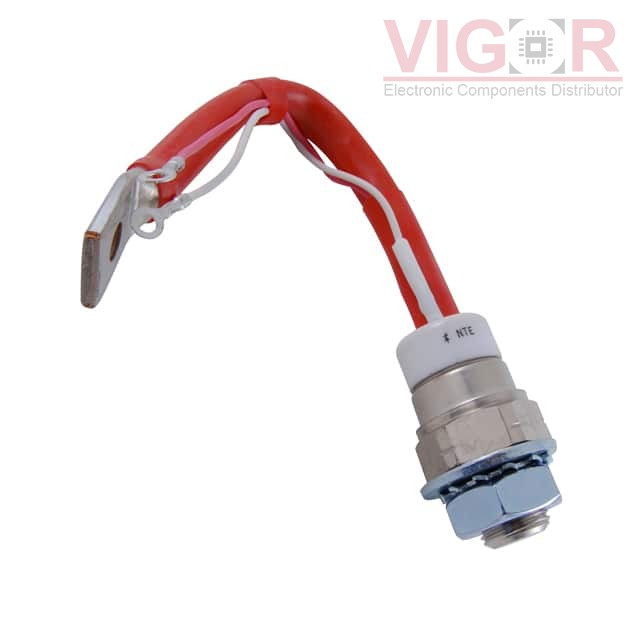

Image is for reference,
please contact us to get the real picture

Part No :: NTE5584

Manufacturer: NTE Electronics, Inc.

Description: SCR 1.2KV 275A TO93

Catalog: Thyristors - SCRs

DataSheet: NTE5584 PDF

Availability: 8 pieces

Unit Price: ~~$252.00000~~

Current price of NTE5584 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NTE5584 Specifications

Type	Description
Series:	-
Package:	Bag
Part Status:	Active
Voltage - Off State:	1.2 kV
Voltage - Gate Trigger (Vgt) (Max):	3 V
Current - Gate Trigger (Igt) (Max):	150 mA
Voltage - On State (Vtm) (Max):	1.7 V
Current - On State (It (AV)) (Max):	150 A
Current - On State (It (RMS)) (Max):	275 A
Current - Hold (Ih) (Max):	-
Current - Off State (Max):	-
Current - Non Rep. Surge 50, 60Hz (Itsm):	3200A, 3500A
SCR Type:	Standard Recovery
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Stud Mount
Package / Case:	TO-209AB, TO-93-4, Stud
Supplier Device Package:	TO-93

Please confirm the specifications of the products when ordering.
