NTE5596

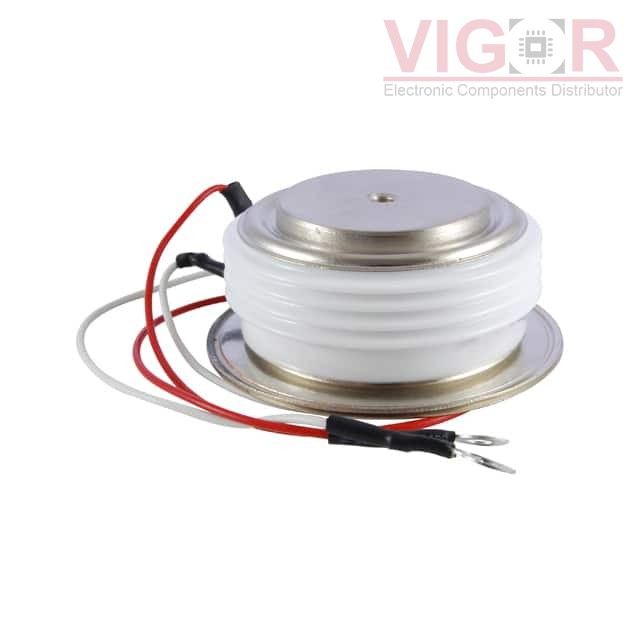

Image is for reference,
please contact us to get the real picture

Part No :: NTE5596

Manufacturer: NTE Electronics, Inc.

Description: SCR 1.2KV 16.4KA TO200AC

Catalog: Thyristors - SCRs

DataSheet: NTE5596 PDF

Availability: 6 pieces

Unit Price: ~~$311.46000~~

Current price of NTE5596 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NTE5596 Specifications

Type	Description
Series:	-
Package:	Bag
Part Status:	Active
Voltage - Off State:	1.2 kV
Voltage - Gate Trigger (Vgt) (Max):	3 V
Current - Gate Trigger (Igt) (Max):	200 mA
Voltage - On State (Vtm) (Max):	1.75 V
Current - On State (It (AV)) (Max):	820 A
Current - On State (It (RMS)) (Max):	16.4 kA
Current - Hold (Ih) (Max):	1 A
Current - Off State (Max):	60 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):	11500A, 12650A
SCR Type:	Standard Recovery
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Chassis Mount
Package / Case:	TO-200AC, B-PUK
Supplier Device Package:	TO-200AC
