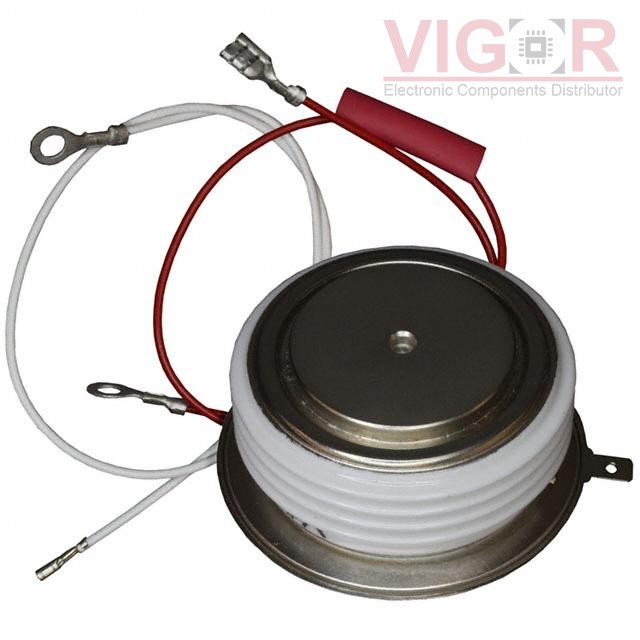

VS-ST700C20L1

Part No :: VS-ST700C20L1

Manufacturer: Vishay General Semiconductor – Diodes Division

VIGOR # :: 2938261

Description: SCR 2KV 1857A B-PUK

Catalog: Thyristors - SCRs

DataSheet: VS-ST700C20L1 PDF

Country of origin: -

Date code: -

VS-ST700C20L1 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Voltage - Off State:	2 kV
Voltage - Gate Trigger (Vgt) (Max):	3 V
Current - Gate Trigger (Igt) (Max):	200 mA
Voltage - On State (Vtm) (Max):	1.8 V
Current - On State (It (AV)) (Max):	910 A
Current - On State (It (RMS)) (Max):	1857 A
Current - Hold (Ih) (Max):	600 mA
Current - Off State (Max):	80 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):	13200A, 13800A
SCR Type:	Standard Recovery
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Chassis Mount
Package / Case:	TO-200AC, B-PUK
Supplier Device Package:	TO-200AC, B-PUK

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jan 26 - Jan 30 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$156.47~~	~~$156.47~~
3	~~$142.24~~	~~$426.73~~

Current price of VS-ST700C20L1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

VS-ST1200C16K0

SCR 1.6KV 3080A A24

2N6399G

SCR 800V 12A TO220AB

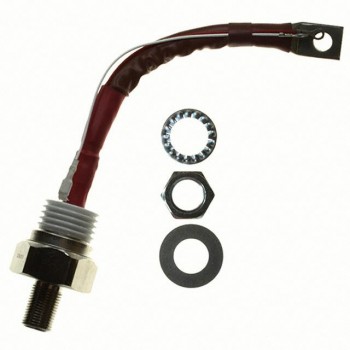

VS-ST330S04P0
