VS-70TPS16PBF

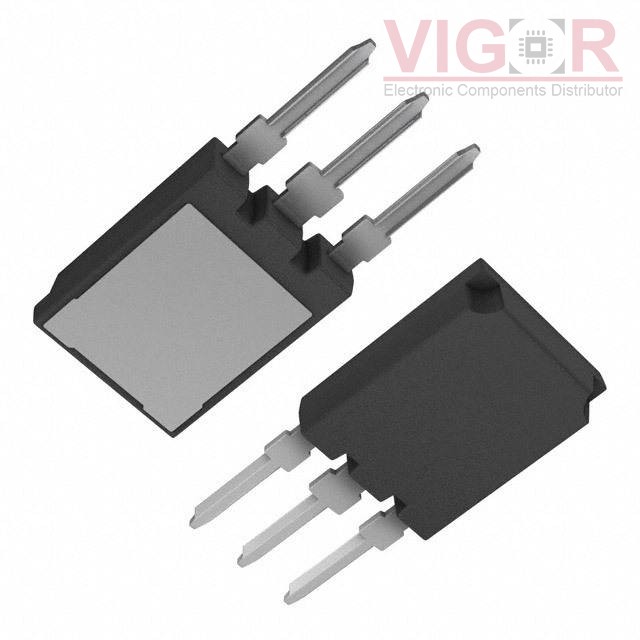

Image is for reference,
please contact us to get the real picture

Part No :: VS-70TPS16PBF

Manufacturer: Vishay General Semiconductor – Diodes Division

Description: SCR 1.6KV 75A SUPER-247

Catalog: Thyristors - SCRs

DataSheet: VS-70TPS16PBF PDF

Availability: 500 pieces

Unit Price: ~~$8.83000~~

Current price of VS-70TPS16PBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

VS-70TPS16PBF Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Voltage - Off State:	1.6 kV
Voltage - Gate Trigger (Vgt) (Max):	1.5 V
Current - Gate Trigger (Igt) (Max):	100 mA
Voltage - On State (Vtm) (Max):	1.4 V
Current - On State (It (AV)) (Max):	70 A
Current - On State (It (RMS)) (Max):	75 A
Current - Hold (Ih) (Max):	200 mA
Current - Off State (Max):	1 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):	1400A @ 50Hz
SCR Type:	Standard Recovery
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Through Hole
Package / Case:	TO-274AA
Supplier Device Package:	SUPER-247™ (TO-274AA)
