BTW69-1200N

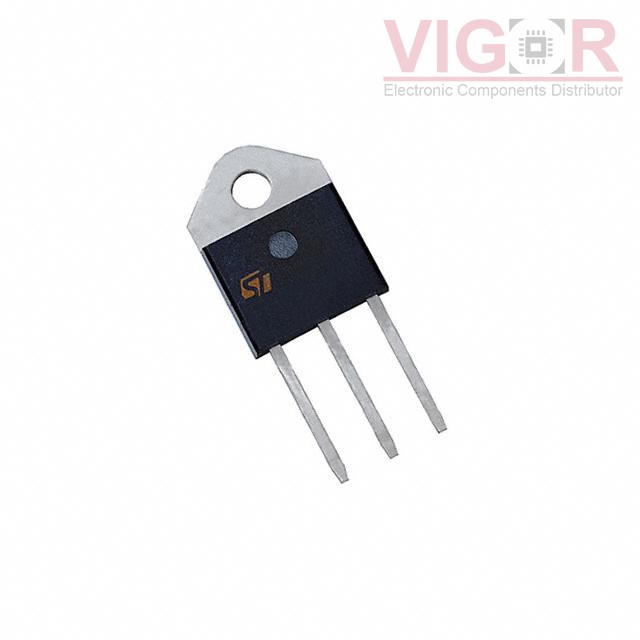

Image is for reference,
please contact us to get the real picture

Part No :: BTW69-1200N

Manufacturer: STMicroelectronics

Description: SCR 1.2KV 50A TOP3

Catalog: Thyristors - SCRs

DataSheet: BTW69-1200N PDF

Availability: 467 pieces

Unit Price: ~~$6.36000~~

Current price of BTW69-1200N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

BTW69-1200N Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Voltage - Off State:	1.2 kV
Voltage - Gate Trigger (Vgt) (Max):	1.3 V
Current - Gate Trigger (Igt) (Max):	50 mA
Voltage - On State (Vtm) (Max):	1.6 V
Current - On State (It (AV)) (Max):	31 A
Current - On State (It (RMS)) (Max):	50 A
Current - Hold (Ih) (Max):	100 mA
Current - Off State (Max):	10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm):	700A, 763A
SCR Type:	Standard Recovery
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Through Hole
Package / Case:	TOP-3
Supplier Device Package:	TOP3

Please confirm the specifications of the products when ordering.
