NTE5570

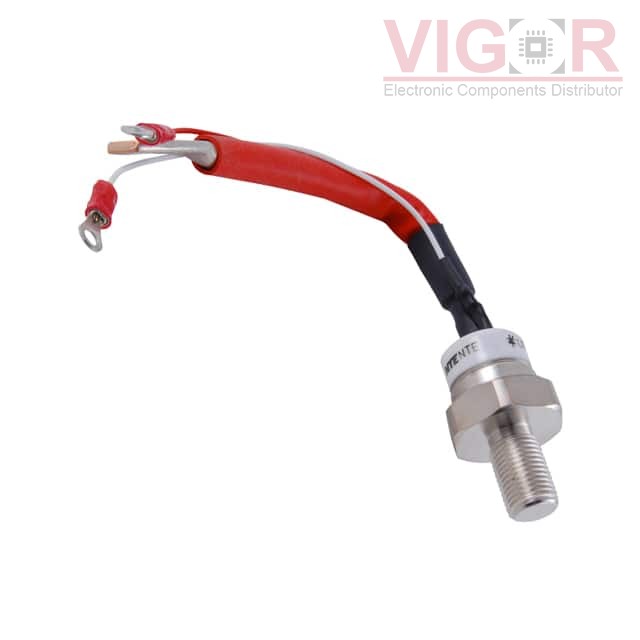

Image is for reference,
please contact us to get the real picture

Part No :: NTE5570

Manufacturer: NTE Electronics, Inc.

Description: SCR 200V 125A TO94

Catalog: Thyristors - SCRs

DataSheet: NTE5570 PDF

Availability: 7 pieces

Unit Price: ~~$72.71000~~

Current price of NTE5570 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NTE5570 Specifications

Type	Description
Series:	-
Package:	Bag
Part Status:	Active
Voltage - Off State:	200 V
Voltage - Gate Trigger (Vgt) (Max):	2.5 V
Current - Gate Trigger (Igt) (Max):	120 mA
Voltage - On State (Vtm) (Max):	1.6 V
Current - On State (It (AV)) (Max):	80 A
Current - On State (It (RMS)) (Max):	125 A
Current - Hold (Ih) (Max):	150 mA
Current - Off State (Max):	15 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):	1600A, 1900A
SCR Type:	Standard Recovery
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Stud Mount
Package / Case:	TO-209AC, TO-94-4, Stud
Supplier Device Package:	TO-94
