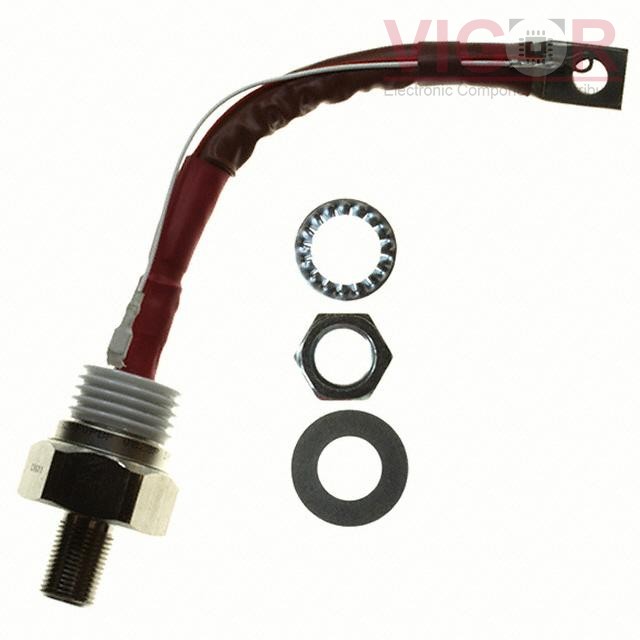

VS-ST330S14P0

Part No :: VS-ST330S14P0

Manufacturer: Vishay General Semiconductor – Diodes Division

VIGOR # :: 2938668

Description: SCR 1.4KV 520A TO209AE

Catalog: Thyristors - SCRs

DataSheet: VS-ST330S14P0 PDF

Country of origin: -

Date code: -

VS-ST330S14P0 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Voltage - Off State:	1.4 kV
Voltage - Gate Trigger (Vgt) (Max):	3 V
Current - Gate Trigger (Igt) (Max):	200 mA
Voltage - On State (Vtm) (Max):	1.52 V
Current - On State (It (AV)) (Max):	330 A
Current - On State (It (RMS)) (Max):	520 A
Current - Hold (Ih) (Max):	600 mA
Current - Off State (Max):	50 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):	9000A, 9420A
SCR Type:	Standard Recovery
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Chassis, Stud Mount
Package / Case:	TO-209AE, TO-118-4, Stud
Supplier Device Package:	TO-209AE (TO-118)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

May 18 - May 22 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$204.4900~~	~~$204.49~~
6	~~$185.9013~~	~~$1 115.41~~

Current price of VS-ST330S14P0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
