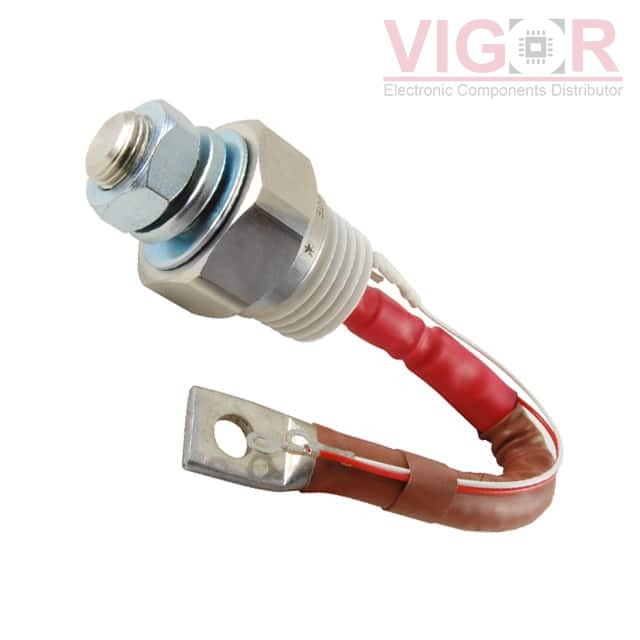

NTE5593

Image is for reference,
please contact us to get the real picture

Part No :: NTE5593

Manufacturer: NTE Electronics, Inc.

Description: SCR 1.6KV 550A TO118

Catalog: Thyristors - SCRs

DataSheet: NTE5593 PDF

Availability: 13 pieces

Unit Price: ~~$320.32000~~

Current price of NTE5593 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NTE5593 Specifications

Type	Description
Series:	-
Package:	Bag
Part Status:	Active
Voltage - Off State:	1.6 kV
Voltage - Gate Trigger (Vgt) (Max):	3 V
Current - Gate Trigger (Igt) (Max):	150 mA
Voltage - On State (Vtm) (Max):	1.4 V
Current - On State (It (AV)) (Max):	350 A
Current - On State (It (RMS)) (Max):	550 A
Current - Hold (Ih) (Max):	-
Current - Off State (Max):	30 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):	9100A, 10000A
SCR Type:	Standard Recovery
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Stud Mount
Package / Case:	TO-209AE, TO-118-4, Stud
Supplier Device Package:	TO-118

Please confirm the specifications of the products when ordering.
