VS-2N684

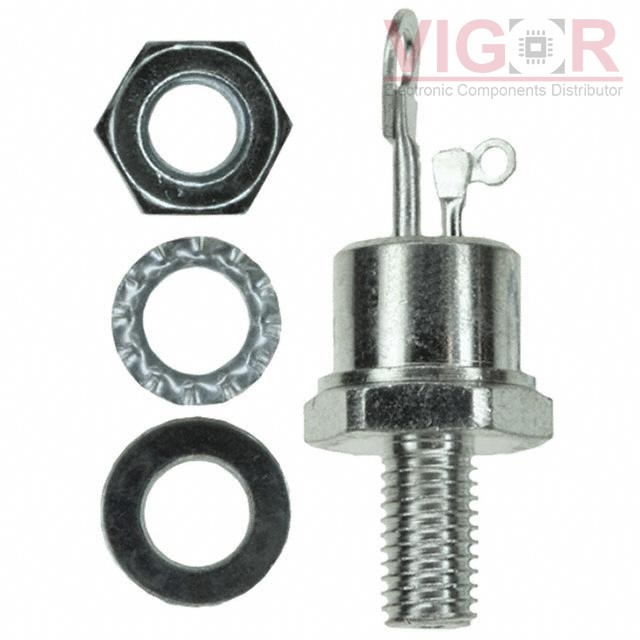

Image is for reference,
please contact us to get the real picture

Part No :: VS-2N684

Manufacturer: Vishay General Semiconductor – Diodes Division

Description: SCR 150V 25A TO208AA

Catalog: Thyristors - SCRs

DataSheet: VS-2N684 PDF

Availability: 0 pieces

Unit Price: ~~$7.72640~~

Current price of VS-2N684 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

VS-2N684 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Voltage - Off State:	150 V
Voltage - Gate Trigger (Vgt) (Max):	2 V
Current - Gate Trigger (Igt) (Max):	40 mA
Voltage - On State (Vtm) (Max):	2 V
Current - On State (It (AV)) (Max):	16 A
Current - On State (It (RMS)) (Max):	25 A
Current - Hold (Ih) (Max):	20 mA
Current - Off State (Max):	6.5 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):	145A, 150A
SCR Type:	Standard Recovery
Operating Temperature:	-65°C ~ 125°C
Mounting Type:	Chassis, Stud Mount
Package / Case:	TO-208AA, TO-48-3, Stud
Supplier Device Package:	TO-208AA (TO-48)
