VS-ST1230C14K0L

Part No :: VS-ST1230C14K0L

Manufacturer: Vishay General Semiconductor – Diodes Division

VIGOR # :: 2939367

Description: SCR 1.4KV 3200A A24

Catalog: Thyristors - SCRs

DataSheet: VS-ST1230C14K0L PDF

Country of origin: -

Date code: -

VS-ST1230C14K0L Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Voltage - Off State:	1.4 kV
Voltage - Gate Trigger (Vgt) (Max):	3 V
Current - Gate Trigger (Igt) (Max):	200 mA
Voltage - On State (Vtm) (Max):	1.62 V
Current - On State (It (AV)) (Max):	1745 A
Current - On State (It (RMS)) (Max):	3200 A
Current - Hold (Ih) (Max):	600 mA
Current - Off State (Max):	100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):	28200A, 29500A
SCR Type:	Standard Recovery
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Chassis Mount
Package / Case:	TO-200AC, K-PUK, A-24
Supplier Device Package:	A-24 (K-Puk)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Dec 29 - Jan 02 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$355.98~~	~~$355.98~~
2	~~$323.61~~	~~$647.22~~

Current price of VS-ST1230C14K0L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

TN4015H-6I

SCR 600V 40A TO220AB

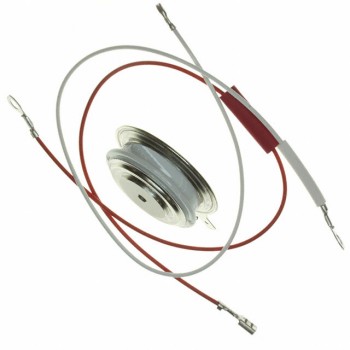

VS-ST173C10CFP0

SCR 1KV 610A A-PUK

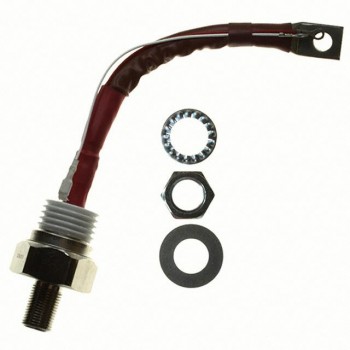

VS-ST303S04PFL0
