S2055R

Part No :: S2055R

Manufacturer: Wickmann / Littelfuse

VIGOR # :: 4598965

Description: SCR 200V 55A TO220

Catalog: Thyristors - SCRs

DataSheet: S2055R PDF

Country of origin: -

Date code: -

S2055R Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Voltage - Off State:	200 V
Voltage - Gate Trigger (Vgt) (Max):	1.5 V
Current - Gate Trigger (Igt) (Max):	40 mA
Voltage - On State (Vtm) (Max):	1.8 V
Current - On State (It (AV)) (Max):	35 A
Current - On State (It (RMS)) (Max):	55 A
Current - Hold (Ih) (Max):	60 mA
Current - Off State (Max):	10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm):	550A, 650A
SCR Type:	Standard Recovery
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Through Hole
Package / Case:	TO-220-3
Supplier Device Package:	TO-220 Non-Isolated Tab

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Dec 29 - Jan 02 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of S2055R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

SK006V

SCR 1KV 6A TO251

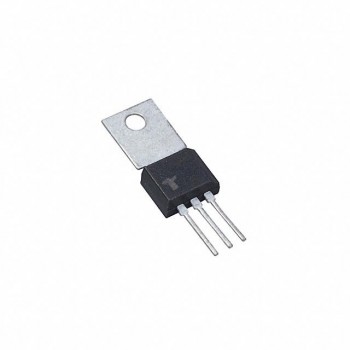

T107M1

SCR 600V 4A TO202

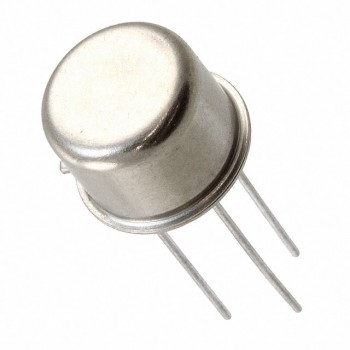

JANTX2N2329
