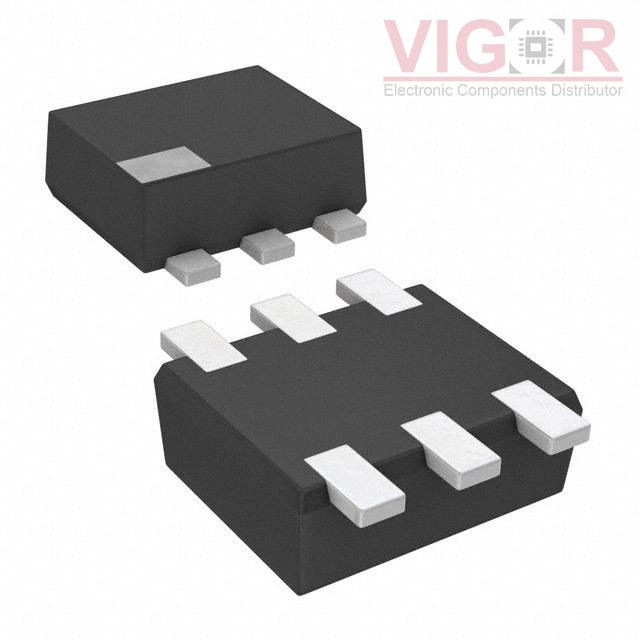

NP0G3D200A

Part No :: NP0G3D200A

Manufacturer: Panasonic

Description: TRANS PREBIAS NPN/PNP SSSMINI6

Catalog: Transistors - Bipolar (BJT) - Arrays, Pre-Biased

DataSheet: NP0G3D200A PDF

Availability: 7620 pieces

Current price of NP0G3D200A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NP0G3D200A Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Transistor Type:	1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max):	80mA
Voltage - Collector Emitter Breakdown (Max):	50V
Resistor - Base (R1):	4.7kOhms, 22kOhms
Resistor - Emitter Base (R2):	4.7kOhms, 47kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce:	20 @ 5mA, 10V / 80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic:	250mV @ 300µA, 10mA
Current - Collector Cutoff (Max):	500nA
Frequency - Transition:	150MHz, 80MHz
Power - Max:	125mW
Mounting Type:	Surface Mount
Package / Case:	SOT-963
Supplier Device Package:	SSSMini6-F1
