DCX123JK-7-F

Part No :: DCX123JK-7-F

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: TRANS NPN/PNP PREBIAS 0.3W SC74R

Catalog: Transistors - Bipolar (BJT) - Arrays, Pre-Biased

DataSheet: DCX123JK-7-F PDF

Availability: 0 pieces

Current price of DCX123JK-7-F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DCX123JK-7-F Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Transistor Type:	1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max):	100mA
Voltage - Collector Emitter Breakdown (Max):	50V
Resistor - Base (R1):	2.2kOhms
Resistor - Emitter Base (R2):	47kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce:	80 @ 10mA, 5V
Vce Saturation (Max) @ Ib, Ic:	300mV @ 250µA, 5mA
Current - Collector Cutoff (Max):	500nA
Frequency - Transition:	250MHz
Power - Max:	300mW
Mounting Type:	Surface Mount

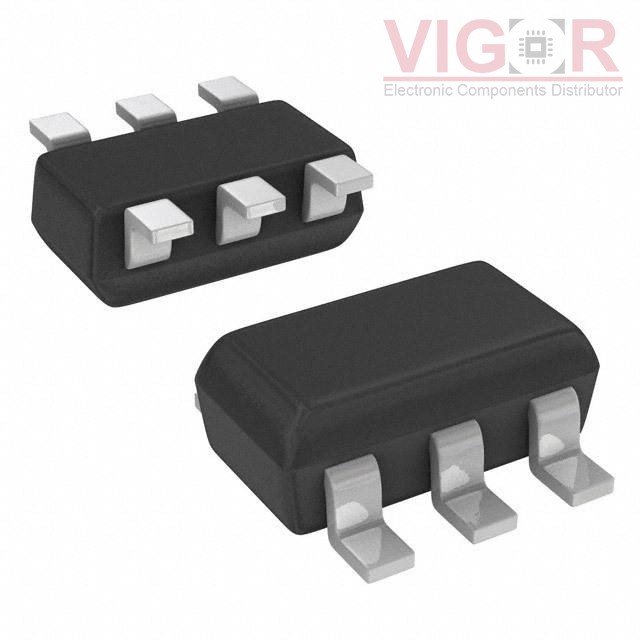

Package / Case:	SC-74, SOT-457
Supplier Device Package:	SC-74R

Please confirm the specifications of the products when ordering.
