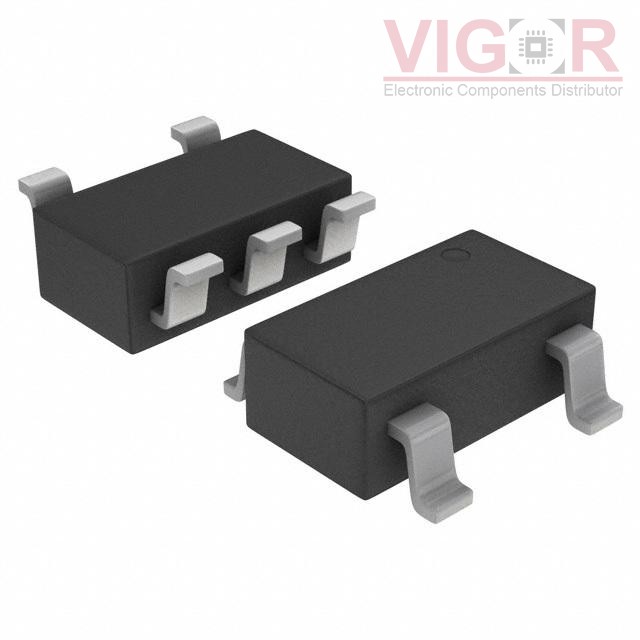

CPH5520-TL-E

Part No :: CPH5520-TL-E

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 2890899

Description: TRANS NPN/PNP 80V/50V 2A 5CPH

Catalog: Transistors - Bipolar (BJT) - Arrays

DataSheet: CPH5520-TL-E PDF

Country of origin: -

Date code: -

CPH5520-TL-E Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Transistor Type:	NPN, PNP (Emitter Coupled)
Current - Collector (Ic) (Max):	2A
Voltage - Collector Emitter Breakdown (Max):	80V, 50V
Vce Saturation (Max) @ Ib, Ic:	260mV @ 50mA, 1A
Current - Collector Cutoff (Max):	1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	200 @ 100mA, 2V
Power - Max:	1.2W
Frequency - Transition:	420MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	SC-74A, SOT-753
Supplier Device Package:	5-CPH
