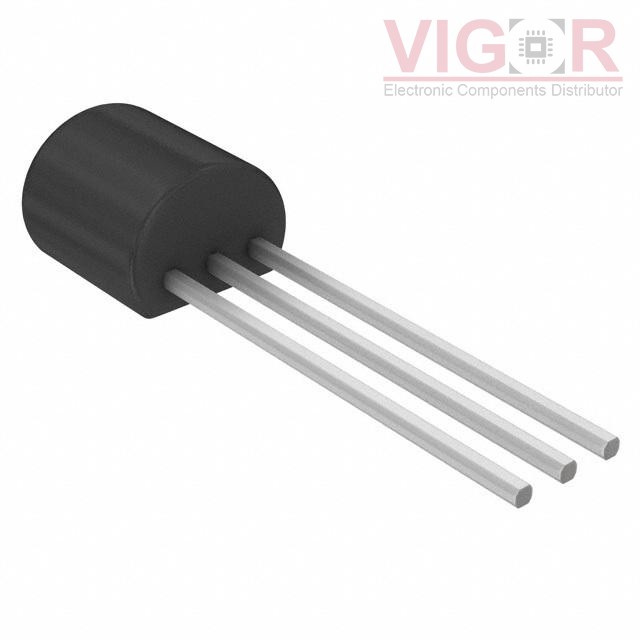

PN3563

Part No :: PN3563

Manufacturer: VIGOR

VIGOR # :: 2940441

Description: RF SMALL SIGNAL TRANSISTOR

Catalog: Transistors - Bipolar (BJT) - RF

DataSheet: PN3563 PDF

Country of origin: -

Date code: -

PN3563 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Transistor Type:	NPN
Voltage - Collector Emitter Breakdown (Max):	15V
Frequency - Transition:	1.5GHz
Noise Figure (dB Typ @ f):	-
Gain:	14dB ~ 26dB
Power - Max:	350mW
DC Current Gain (hFE) (Min) @ Ic, Vce:	20 @ 8mA, 10V
Current - Collector (Ic) (Max):	50mA
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package:	TO-92-3
