2SC4536-AZ

2SC4536-AZ

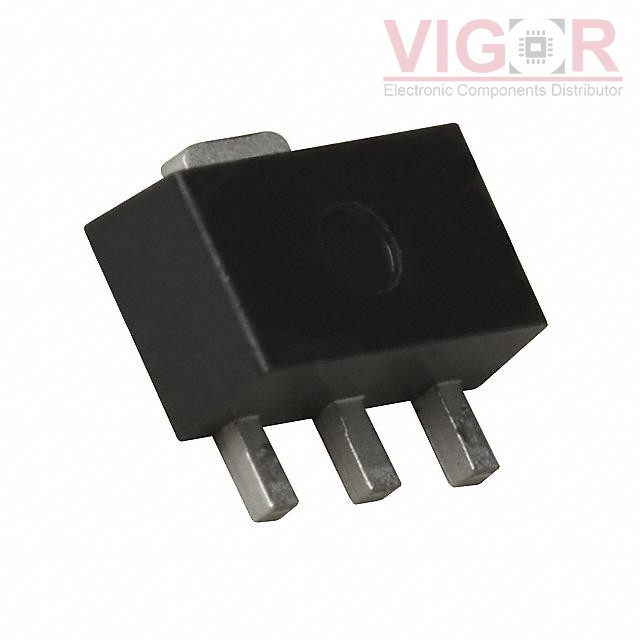

Image is for reference,
please contact us to get the real picture

Part No :

2SC4536-AZ

Manufacturer
VIGOR
Description
RF TRANSISTOR FOR HIGH FREQUENCY
Catalog
Transistors - Bipolar (BJT) - RF
Shipped from
HK warehouse
Expected Shipping Date
Oct 05 - Oct 09 2025
DataSheet
2SC4536-AZ PDF
Availability
0 pieces
Unit Price
$0.34000

Current price of 2SC4536-AZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2SC4536-AZ Specifications
Type Description
Series:-
Package:Strip
Part Status:Obsolete
Transistor Type:NPN
Voltage - Collector Emitter Breakdown (Max):15V
Frequency - Transition:-
Noise Figure (dB Typ @ f):2dB @ 1GHz
Gain:7.2dB
Power - Max:2W
DC Current Gain (hFE) (Min) @ Ic, Vce:60 @ 50mA, 10V
Current - Collector (Ic) (Max):250mA
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-243AA
Supplier Device Package:SOT-89
