JANTX2N2857

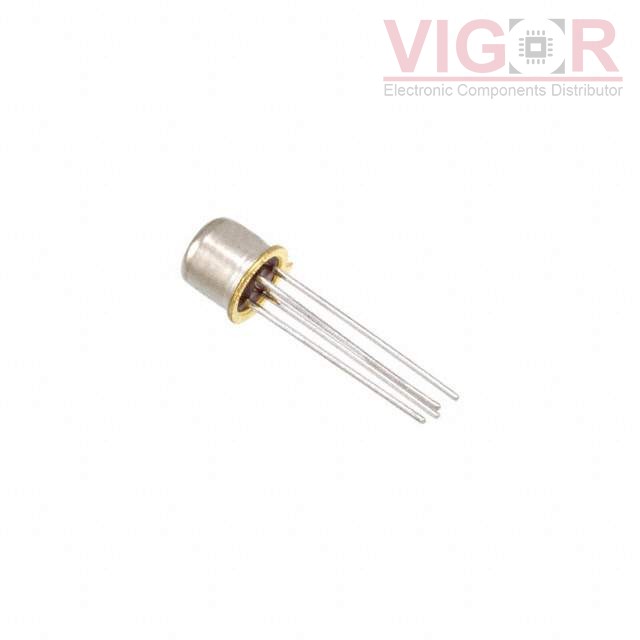

Image is for reference,
please contact us to get the real picture

Part No :: JANTX2N2857

Manufacturer: Microsemi

Description: RF TRANS NPN 15V 500MHZ TO72

Catalog: Transistors - Bipolar (BJT) - RF

DataSheet: JANTX2N2857 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of JANTX2N2857 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

JANTX2N2857 Specifications

Type	Description
Series:	Military, MIL-PRF-19500/343
Package:	Bulk
Part Status:	Obsolete
Transistor Type:	NPN
Voltage - Collector Emitter Breakdown (Max):	15V
Frequency - Transition:	500MHz
Noise Figure (dB Typ @ f):	4.5dB @ 450MHz
Gain:	12.5dB ~ 21dB @ 450MHz
Power - Max:	200mW
DC Current Gain (hFE) (Min) @ Ic, Vce:	30 @ 3mA, 1V
Current - Collector (Ic) (Max):	40mA
Operating Temperature:	-65°C ~ 200°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-72-3 Metal Can
Supplier Device Package:	TO-72

Please confirm the specifications of the products when ordering.
