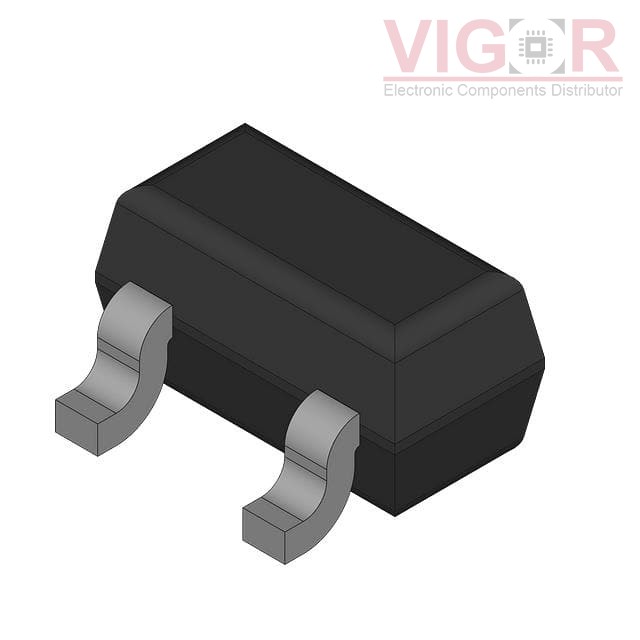

DTC143ZET1

Part No :: DTC143ZET1

Manufacturer: VIGOR

VIGOR # :: 2983551

Description: SMALL SIGNAL BIPOLAR TRANSISTOR

Catalog: Transistors - Bipolar (BJT) - Single, Pre-Biased

DataSheet: DTC143ZET1 PDF

Country of origin: -

Date code: -

DTC143ZET1 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Transistor Type:	NPN - Pre-Biased
Current - Collector (Ic) (Max):	100 mA
Voltage - Collector Emitter Breakdown (Max):	50 V
Resistor - Base (R1):	4.7 kOhms
Resistor - Emitter Base (R2):	47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce:	80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic:	250mV @ 1mA, 10mA
Current - Collector Cutoff (Max):	500nA
Frequency - Transition:	-
Power - Max:	200 mW
Mounting Type:	Surface Mount
Package / Case:	SC-75, SOT-416
Supplier Device Package:	SC-75, SOT-416

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 45000

Shipped from

HK warehouse

Expected Shipping Date

Oct 28 - Nov 01 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.0400~~	~~$0.04~~

Current price of DTC143ZET1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
