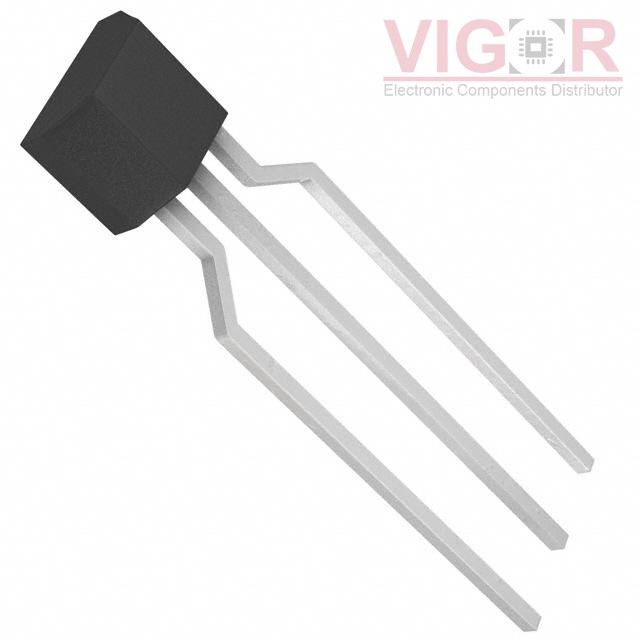

DTC114WSATP

Part No :: DTC114WSATP

Manufacturer: ROHM Semiconductor

VIGOR # :: 4618099

Description: TRANS PREBIAS NPN 300MW SPT

Catalog: Transistors - Bipolar (BJT) - Single, Pre-Biased

DataSheet: DTC114WSATP PDF

Country of origin: -

Date code: -

DTC114WSATP Specifications

Type	Description
Series:	-
Package:	Tape & Box (TB)
Part Status:	Obsolete
Transistor Type:	NPN - Pre-Biased
Current - Collector (Ic) (Max):	100 mA
Voltage - Collector Emitter Breakdown (Max):	50 V
Resistor - Base (R1):	10 kOhms
Resistor - Emitter Base (R2):	4.7 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce:	24 @ 10mA, 5V
Vce Saturation (Max) @ Ib, Ic:	300mV @ 500µA, 10mA
Current - Collector Cutoff (Max):	500nA
Frequency - Transition:	250 MHz
Power - Max:	300 mW
Mounting Type:	Through Hole
Package / Case:	SC-72 Formed Leads
Supplier Device Package:	SPT

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

May 18 - May 22 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of DTC114WSATP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

BCR 158L3 E6327

TRANS PREBIAS PNP 250MW TSLP-3

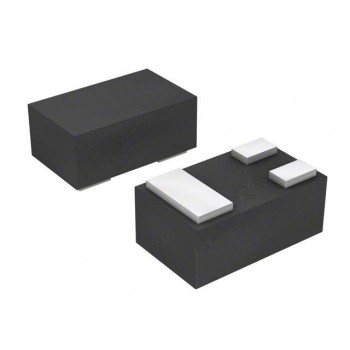

BCR 141L3 E6327
