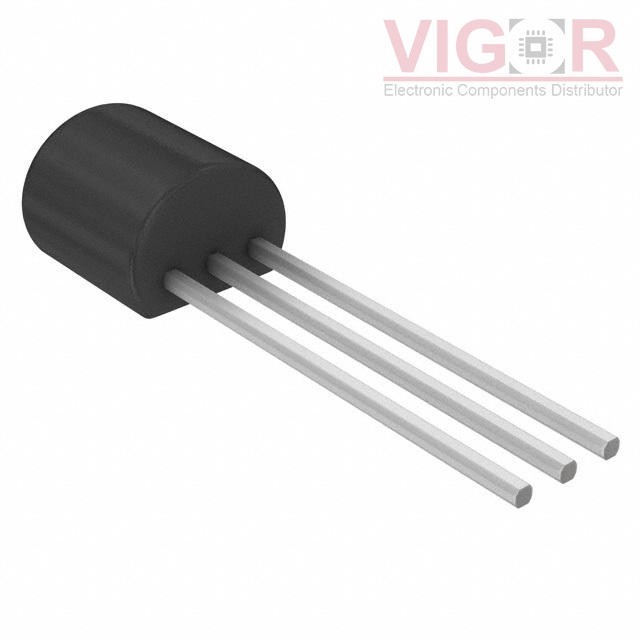

ZTX689B

Part No :: ZTX689B

Manufacturer: Zetex Semiconductors (Diodes Inc.)

VIGOR # :: 2882547

Description: TRANS NPN 20V 3A E-LINE

Catalog: Transistors - Bipolar (BJT) - Single

DataSheet: ZTX689B PDF

Country of origin: -

Date code: -

ZTX689B Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Transistor Type:	NPN
Current - Collector (Ic) (Max):	3 A
Voltage - Collector Emitter Breakdown (Max):	20 V
Vce Saturation (Max) @ Ib, Ic:	500mV @ 10mA, 2A
Current - Collector Cutoff (Max):	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	500 @ 100mA, 2V
Power - Max:	1 W
Frequency - Transition:	150MHz
Operating Temperature:	-55°C ~ 200°C (TJ)
Mounting Type:	Through Hole
Package / Case:	E-Line-3
Supplier Device Package:	E-Line (TO-92 compatible)
