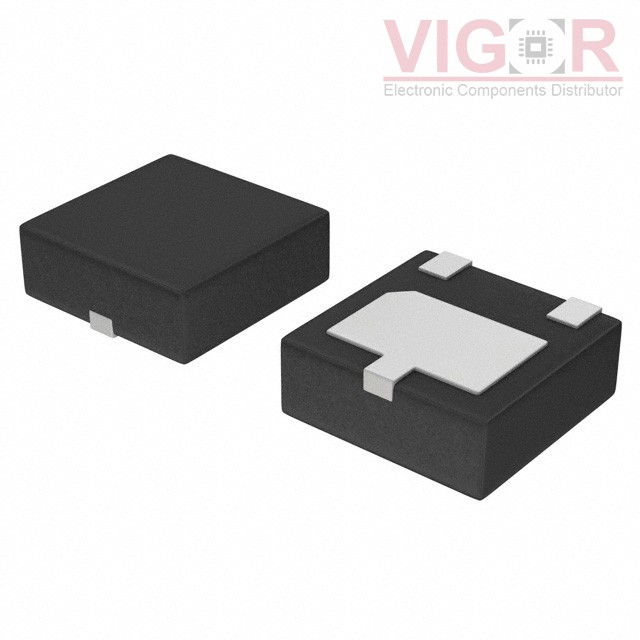

NSS20501UW3T2G

Part No :: NSS20501UW3T2G

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: TRANS NPN 20V 5A 3WDFN

Catalog: Transistors - Bipolar (BJT) - Single

DataSheet: NSS20501UW3T2G PDF

Availability: 2843 pieces

Current price of NSS20501UW3T2G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NSS20501UW3T2G Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Transistor Type:	NPN
Current - Collector (Ic) (Max):	5 A
Voltage - Collector Emitter Breakdown (Max):	20 V
Vce Saturation (Max) @ Ib, Ic:	125mV @ 400mA, 4A
Current - Collector Cutoff (Max):	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	200 @ 2A, 2V
Power - Max:	875 mW
Frequency - Transition:	150MHz
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	3-WDFN Exposed Pad
Supplier Device Package:	3-WDFN (2x2)
