ZTX705STZ

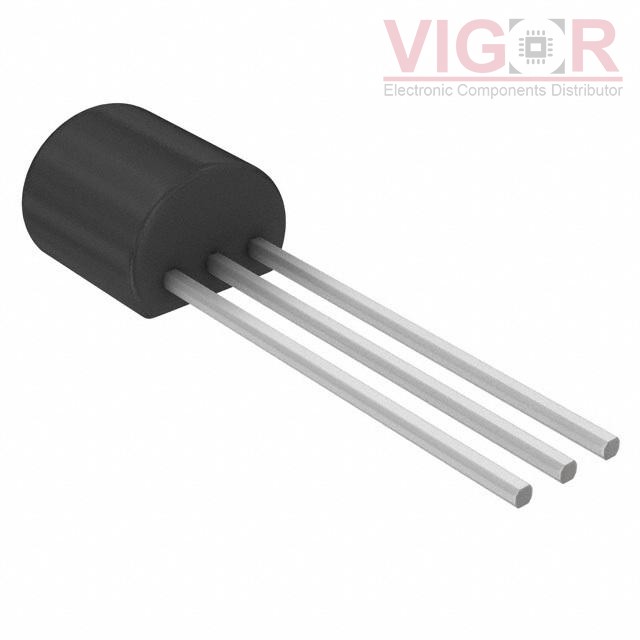

Part No :: ZTX705STZ

Manufacturer: Zetex Semiconductors (Diodes Inc.)

VIGOR # :: 2886533

Description: TRANS PNP DARL 120V 1A E-LINE

Catalog: Transistors - Bipolar (BJT) - Single

DataSheet: ZTX705STZ PDF

Country of origin: -

Date code: -

ZTX705STZ Specifications

Type	Description
Series:	-
Package:	Tape & Box (TB)
Part Status:	Active
Transistor Type:	PNP - Darlington
Current - Collector (Ic) (Max):	1 A
Voltage - Collector Emitter Breakdown (Max):	120 V
Vce Saturation (Max) @ Ib, Ic:	2.5V @ 2mA, 2A
Current - Collector Cutoff (Max):	10µA
DC Current Gain (hFE) (Min) @ Ic, Vce:	3000 @ 1A, 5V
Power - Max:	1 W
Frequency - Transition:	160MHz
Operating Temperature:	-55°C ~ 200°C (TJ)
Mounting Type:	Through Hole
Package / Case:	E-Line-3, Formed Leads
Supplier Device Package:	E-Line (TO-92 compatible)
