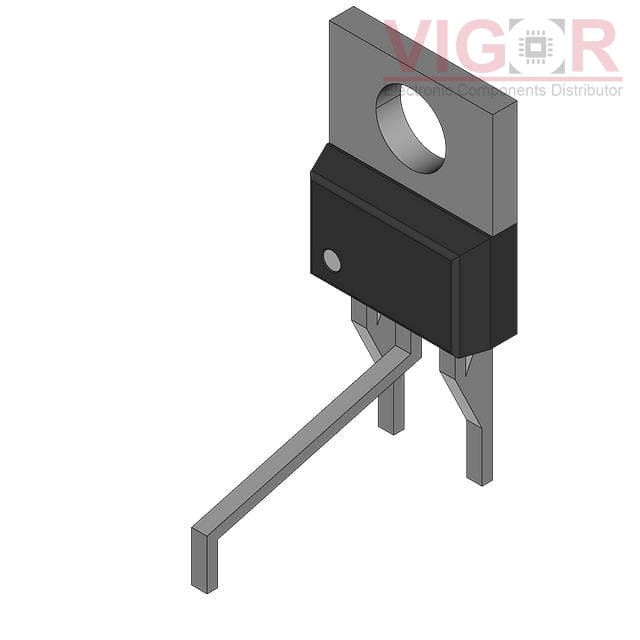

2SD1685G

2SD1685G

Image is for reference,
please contact us to get the real picture

Part No :

2SD1685G

Manufacturer
VIGOR
Description
20 V, 5 A, LOW VCE(SAT), NPN SIN
Catalog
Transistors - Bipolar (BJT) - Single
Shipped from
HK warehouse
Expected Shipping Date
Oct 14 - Oct 18 2025
DataSheet
2SD1685G PDF
Availability
7400 pieces
Unit Price
$0.21000

Current price of 2SD1685G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2SD1685G Specifications
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
Transistor Type:NPN
Current - Collector (Ic) (Max):5 A
Voltage - Collector Emitter Breakdown (Max):20 V
Vce Saturation (Max) @ Ib, Ic:500mV @ 60mA, 3A
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:280 @ 500mA, 2V
Power - Max:1.5 W
Frequency - Transition:120MHz
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-225AA, TO-126-3
Supplier Device Package:TO-126ML
