JANTX2N5682

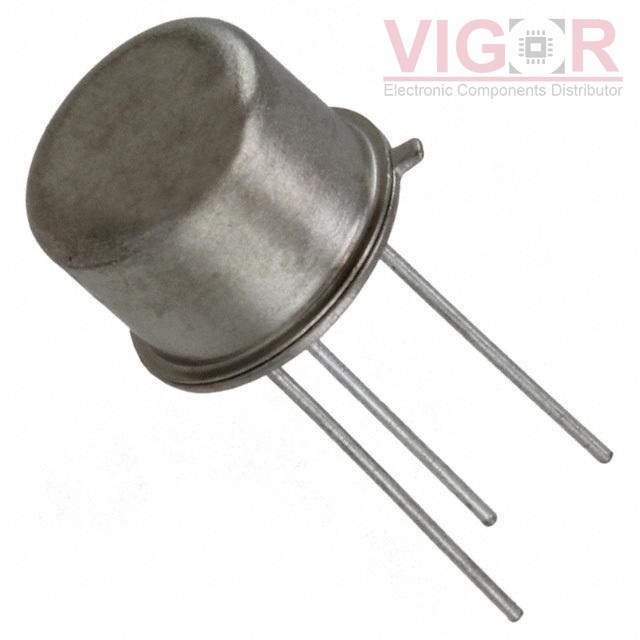

Image is for reference,
please contact us to get the real picture

Part No :: JANTX2N5682

Manufacturer: Roving Networks / Microchip Technology

Description: TRANS NPN 120V 1A TO-39

Catalog: Transistors - Bipolar (BJT) - Single

DataSheet: JANTX2N5682 PDF

Availability: 412 pieces

Unit Price: ~~$40.42000~~

Current price of JANTX2N5682 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

JANTX2N5682 Specifications

Type	Description
Series:	Military, MIL-PRF-19500/583
Package:	Bulk
Part Status:	Active
Transistor Type:	NPN
Current - Collector (Ic) (Max):	1 A
Voltage - Collector Emitter Breakdown (Max):	120 V
Vce Saturation (Max) @ Ib, Ic:	1V @ 50mA, 500mA
Current - Collector Cutoff (Max):	10µA
DC Current Gain (hFE) (Min) @ Ic, Vce:	40 @ 250mA, 2V
Power - Max:	1 W
Frequency - Transition:	-
Operating Temperature:	-65°C ~ 200°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-205AD, TO-39-3 Metal Can
Supplier Device Package:	TO-39
