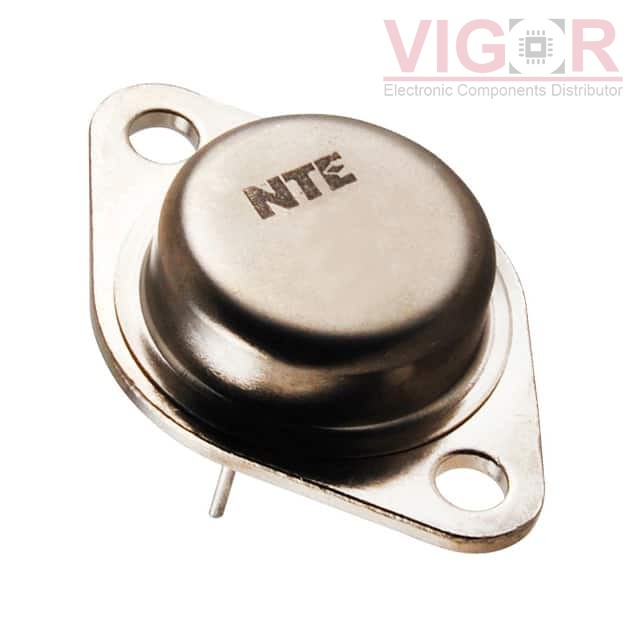

2N5686

Part No :: 2N5686

Manufacturer: NTE Electronics, Inc.

VIGOR # :: 2890107

Description: TRANS NPN 80V 50A TO3

Catalog: Transistors - Bipolar (BJT) - Single

DataSheet: 2N5686 PDF

Country of origin: -

Date code: -

2N5686 Specifications

Type	Description
Series:	-
Package:	Bag
Part Status:	Active
Transistor Type:	NPN
Current - Collector (Ic) (Max):	50 A
Voltage - Collector Emitter Breakdown (Max):	80 V
Vce Saturation (Max) @ Ib, Ic:	1V @ 2.5A, 25A
Current - Collector Cutoff (Max):	1mA
DC Current Gain (hFE) (Min) @ Ic, Vce:	15 @ 25A, 2V
Power - Max:	300 W
Frequency - Transition:	2MHz
Operating Temperature:	-65°C ~ 200°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-204AE
Supplier Device Package:	TO-3
