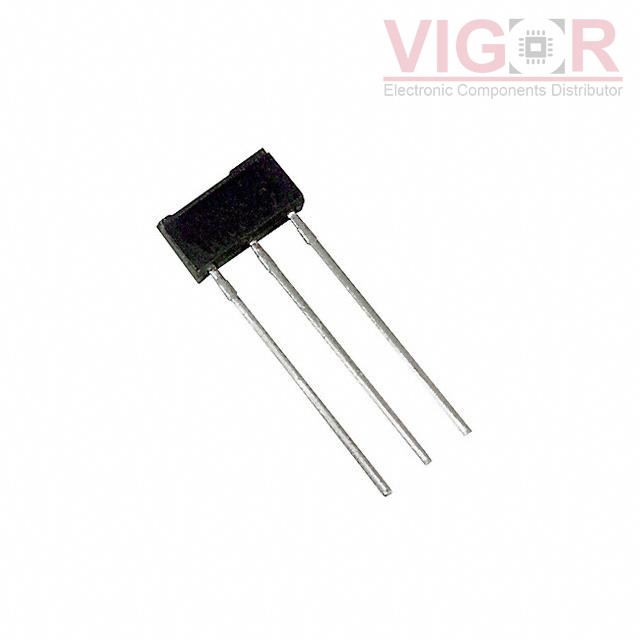

2SD19960TA

Part No :: 2SD19960TA

Manufacturer: Panasonic

Description: TRANS NPN 20V 0.5A MT-1

Catalog: Transistors - Bipolar (BJT) - Single

DataSheet: 2SD19960TA PDF

Availability: 3885 pieces

Current price of 2SD19960TA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

2SD19960TA Specifications

Type	Description
Series:	-
Package:	Cut Tape (CT)Tape & Box (TB)
Part Status:	Obsolete
Transistor Type:	NPN
Current - Collector (Ic) (Max):	500 mA
Voltage - Collector Emitter Breakdown (Max):	20 V
Vce Saturation (Max) @ Ib, Ic:	400mV @ 20mA, 500mA
Current - Collector Cutoff (Max):	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	400 @ 500mA, 2V
Power - Max:	600 mW
Frequency - Transition:	200MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	3-SIP
Supplier Device Package:	MT-1-A1

Please confirm the specifications of the products when ordering.
