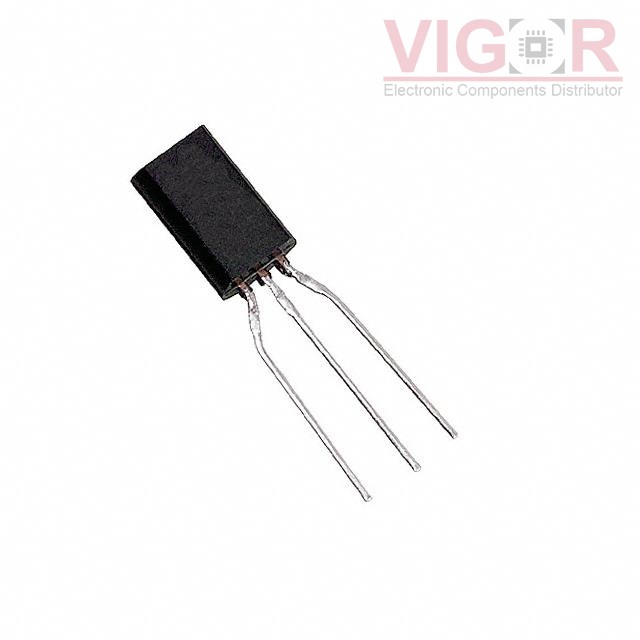

2SD09660R

Part No :: 2SD09660R

Manufacturer: Panasonic

VIGOR # :: 4576413

Description: TRANS NPN 20V 5A TO-92L

Catalog: Transistors - Bipolar (BJT) - Single

DataSheet: 2SD09660R PDF

Country of origin: -

Date code: -

2SD09660R Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Transistor Type:	NPN
Current - Collector (Ic) (Max):	5 A
Voltage - Collector Emitter Breakdown (Max):	20 V
Vce Saturation (Max) @ Ib, Ic:	1V @ 100mA, 3A
Current - Collector Cutoff (Max):	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	340 @ 500mA, 2V
Power - Max:	1 W
Frequency - Transition:	150MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-226-3, TO-92-3 Long Body
Supplier Device Package:	TO-92L-A1
