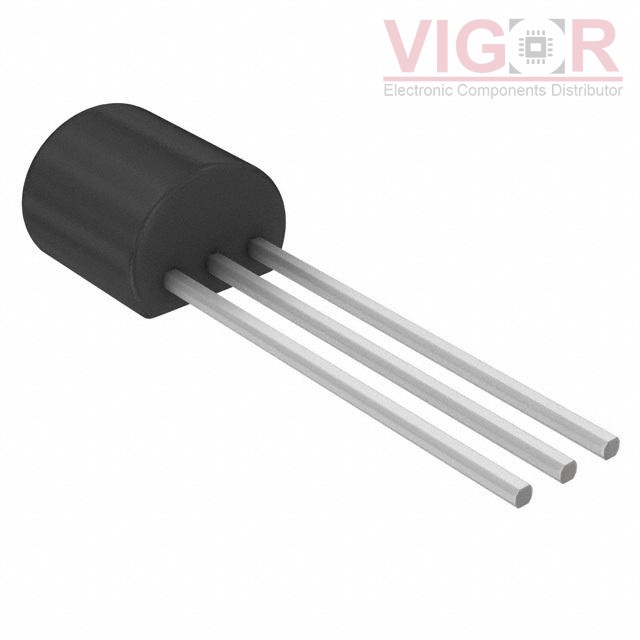

PN3566

Part No :: PN3566

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 4577934

Description: TRANS NPN 30V 0.6A TO-92

Catalog: Transistors - Bipolar (BJT) - Single

DataSheet: PN3566 PDF

Country of origin: -

Date code: -

PN3566 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Transistor Type:	NPN
Current - Collector (Ic) (Max):	600 mA
Voltage - Collector Emitter Breakdown (Max):	30 V
Vce Saturation (Max) @ Ib, Ic:	1V @ 10mA, 100mA
Current - Collector Cutoff (Max):	50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	150 @ 10mA, 10V
Power - Max:	625 mW
Frequency - Transition:	-
Operating Temperature:	-
Mounting Type:	Through Hole
Package / Case:	TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package:	TO-92-3
