2SD1768STPQ

2SD1768STPQ

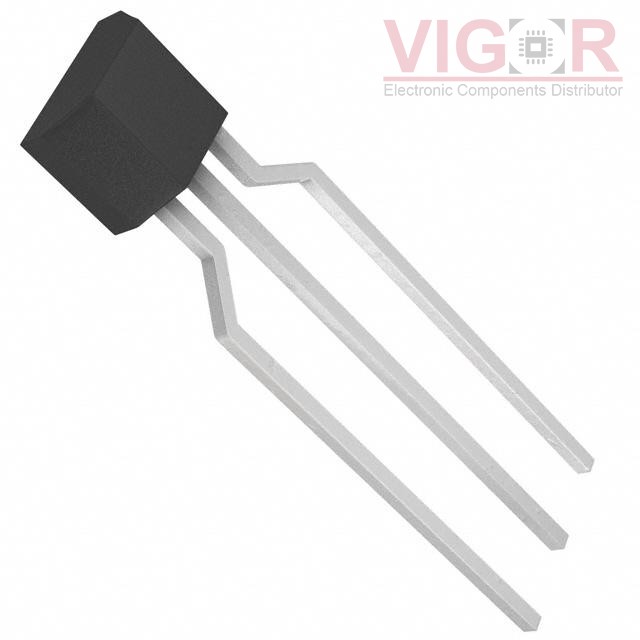

Image is for reference,
please contact us to get the real picture

Part No :

2SD1768STPQ

Manufacturer
ROHM Semiconductor
Description
TRANS NPN 80V 1A SPT SC-72
Catalog
Transistors - Bipolar (BJT) - Single
Shipped from
HK warehouse
Expected Shipping Date
Nov 01 - Nov 05 2025
DataSheet
2SD1768STPQ PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of 2SD1768STPQ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2SD1768STPQ Specifications
Type Description
Series:-
Package:Tape & Box (TB)
Part Status:Obsolete
Transistor Type:NPN
Current - Collector (Ic) (Max):1 A
Voltage - Collector Emitter Breakdown (Max):80 V
Vce Saturation (Max) @ Ib, Ic:400mV @ 20mA, 500mA
Current - Collector Cutoff (Max):1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:120 @ 500mA, 3V
Power - Max:300 mW
Frequency - Transition:100MHz
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:SC-72 Formed Leads
Supplier Device Package:SPT
