AON2801

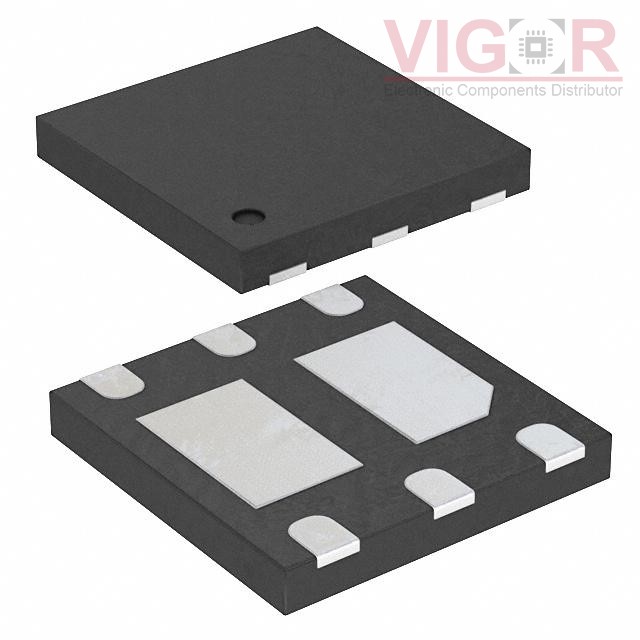

Image is for reference,
please contact us to get the real picture

Part No :: AON2801

Manufacturer: Alpha and Omega Semiconductor, Inc.

Description: MOSFET 2P-CH 20V 3A DFN2X2-6L

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: AON2801 PDF

Availability: 0 pieces

Unit Price: ~~$0.21142~~

Current price of AON2801 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AON2801 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
FET Type:	2 P-Channel (Dual)
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	3A
Rds On (Max) @ Id, Vgs:	120mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	6.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	700pF @ 10V
Power - Max:	1.5W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	6-WDFN Exposed Pad
Supplier Device Package:	6-DFN-EP (2x2)

Please confirm the specifications of the products when ordering.
