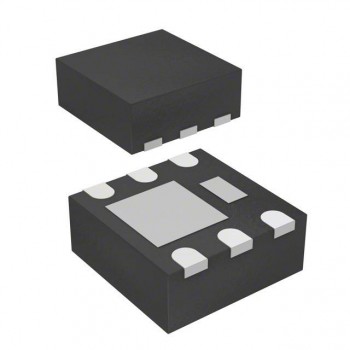

FDM2509NZ

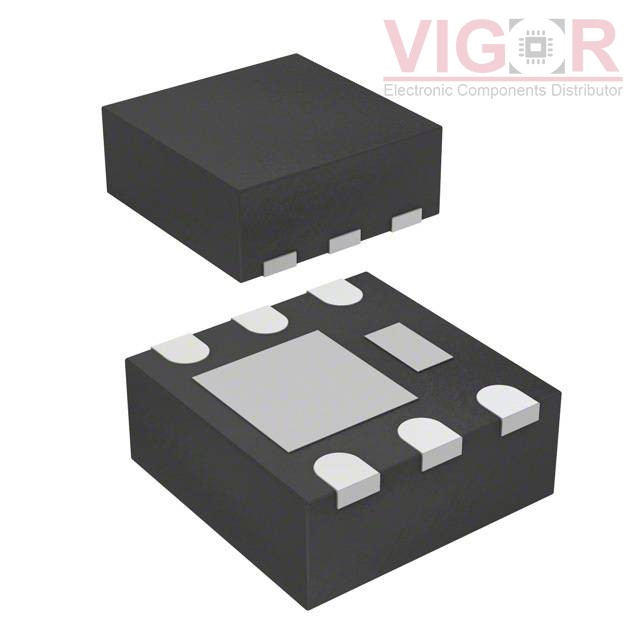

Image is for reference,
please contact us to get the real picture

Part No :: FDM2509NZ

Manufacturer: VIGOR

Description: SMALL SIGNAL N-CHANNEL MOSFET

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: FDM2509NZ PDF

Availability: 4849 pieces

Unit Price: ~~$0.34000~~

Current price of FDM2509NZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FDM2509NZ Specifications

Type	Description
Series:	PowerTrench®
Package:	Bulk
Part Status:	Obsolete
FET Type:	2 N-Channel (Dual)
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	8.7A
Rds On (Max) @ Id, Vgs:	18mOhm @ 8.7A, 4.5V
Vgs(th) (Max) @ Id:	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	17nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	1200pF @ 10V
Power - Max:	800mW
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	6-WFDFN Exposed Pad
Supplier Device Package:	6-MicroFET (2x5)
