SIZF906BDT-T1-GE3

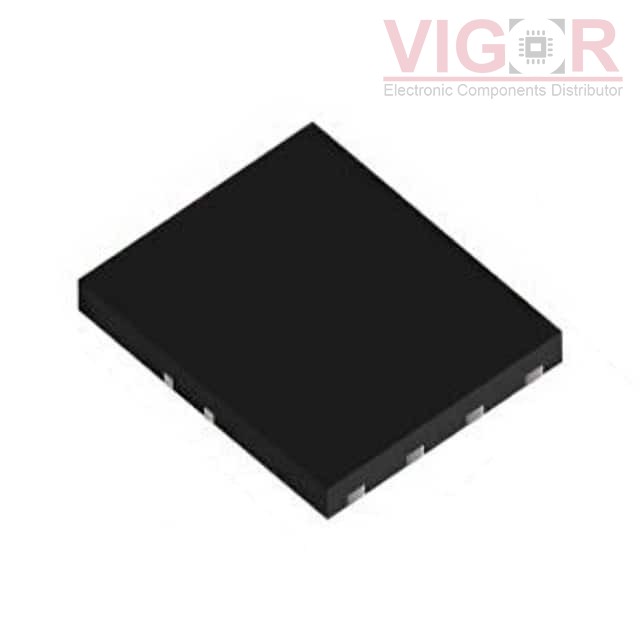

Image is for reference,
please contact us to get the real picture

Part No :: SIZF906BDT-T1-GE3

Manufacturer: Vishay / Siliconix

Description: DUAL N-CHANNEL 30 V (D-S) MOSFET

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: SIZF906BDT-T1-GE3 PDF

Availability: 0 pieces

Unit Price: ~~$1.73000~~

Current price of SIZF906BDT-T1-GE3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SIZF906BDT-T1-GE3 Specifications

Type	Description
Series:	TrenchFET® Gen IV
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	2 N-Channel (Dual), Schottky
FET Feature:	Standard
Drain to Source Voltage (Vdss):	30V
Current - Continuous Drain (Id) @ 25°C:	36A (Ta), 105A (Tc), 63A (Ta), 257A (Tc)
Rds On (Max) @ Id, Vgs:	2.1mOhm @ 15A, 10V, 680µOhm @ 20A, 10V
Vgs(th) (Max) @ Id:	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	49nC @ 10V, 165nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	1630pF @ 15V, 5550pF @ 15V
Power - Max:	4.5W (Ta), 38W (Tc), 5W (Ta), 83W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-PowerWDFN
Supplier Device Package:	8-PowerPair® (6x5)
