FDPC5030SG

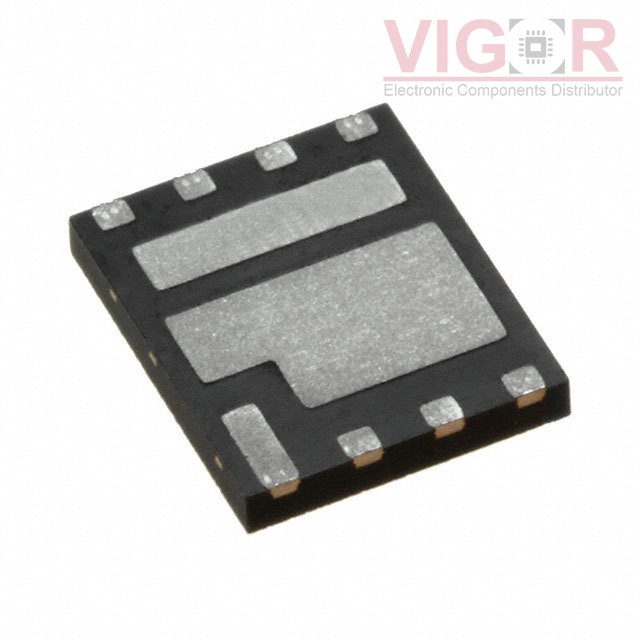

Image is for reference,
please contact us to get the real picture

Part No :: FDPC5030SG

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET 2N-CH 30V PWRCLIP56

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: FDPC5030SG PDF

Availability: 3068 pieces

Unit Price: ~~$1.52000~~

Current price of FDPC5030SG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FDPC5030SG Specifications

Type	Description
Series:	PowerTrench®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	2 N-Channel (Dual) Asymmetrical
FET Feature:	Standard
Drain to Source Voltage (Vdss):	30V
Current - Continuous Drain (Id) @ 25°C:	17A, 25A
Rds On (Max) @ Id, Vgs:	5mOhm @ 17A, 10V
Vgs(th) (Max) @ Id:	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	24nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	1715pF @ 15V
Power - Max:	1W, 1.1W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-PowerWDFN
Supplier Device Package:	Power Clip 56

Please confirm the specifications of the products when ordering.
