FDMS9620S

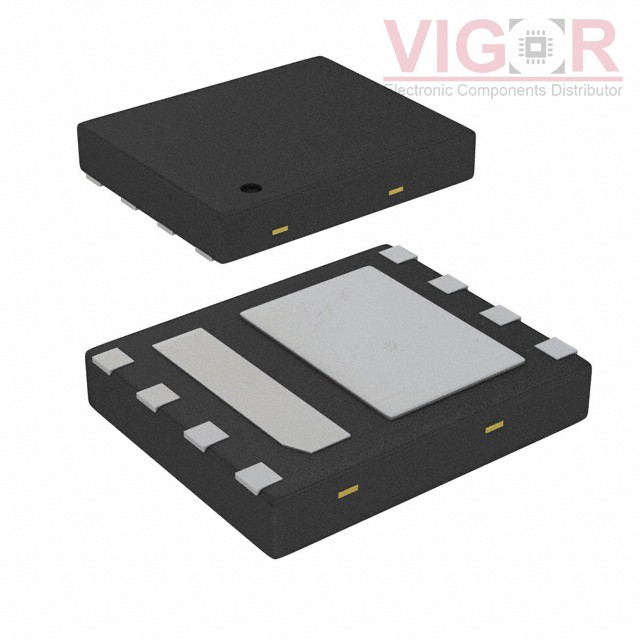

Image is for reference,
please contact us to get the real picture

Part No :: FDMS9620S

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET 2N-CH 30V 8MLP PWR56

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: FDMS9620S PDF

Availability: 10494 pieces

Unit Price: ~~$1.22000~~

Current price of FDMS9620S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FDMS9620S Specifications

Type	Description
Series:	PowerTrench®
Package:	Tape & Reel (TR)Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	2 N-Channel (Dual)
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	30V
Current - Continuous Drain (Id) @ 25°C:	7.5A, 10A
Rds On (Max) @ Id, Vgs:	21.5mOhm @ 7.5A, 10V
Vgs(th) (Max) @ Id:	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	14nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	665pF @ 15V
Power - Max:	1W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-PowerWDFN
Supplier Device Package:	8-MLP (5x6), Power56
