DMN2014LHAB-7

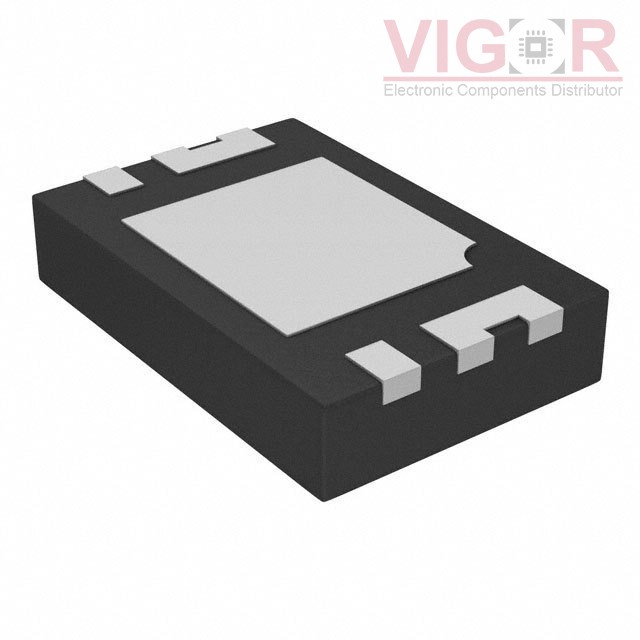

Image is for reference,
please contact us to get the real picture

Part No :: DMN2014LHAB-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: MOSFET 2N-CH 20V 9A 6-UDFN

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: DMN2014LHAB-7 PDF

Availability: 0 pieces

Unit Price: ~~$0.54000~~

Current price of DMN2014LHAB-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DMN2014LHAB-7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	2 N-Channel (Dual) Common Drain
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	9A
Rds On (Max) @ Id, Vgs:	13mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id:	1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	16nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	1550pF @ 10V
Power - Max:	800mW
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	6-UFDFN Exposed Pad
Supplier Device Package:	U-DFN2030-6 (Type B)

Please confirm the specifications of the products when ordering.
