MSCSM70AM07CT3AG

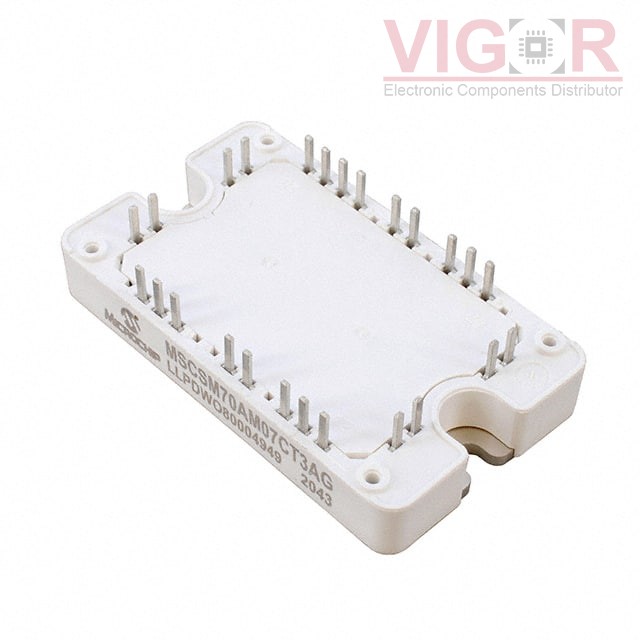

Image is for reference,
please contact us to get the real picture

Part No :: MSCSM70AM07CT3AG

Manufacturer: Roving Networks / Microchip Technology

Description: PM-MOSFET-SIC-SBD~-SP3F

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: MSCSM70AM07CT3AG PDF

Availability: 7 pieces

Unit Price: ~~$348.54000~~

Current price of MSCSM70AM07CT3AG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MSCSM70AM07CT3AG Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
FET Type:	2 N Channel (Phase Leg)
FET Feature:	Silicon Carbide (SiC)
Drain to Source Voltage (Vdss):	700V
Current - Continuous Drain (Id) @ 25°C:	353A (Tc)
Rds On (Max) @ Id, Vgs:	6.4mOhm @ 120A, 20V
Vgs(th) (Max) @ Id:	2.4V @ 12mA
Gate Charge (Qg) (Max) @ Vgs:	645nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds:	13500pF @ 700V
Power - Max:	988W (Tc)
Operating Temperature:	-40°C ~ 175°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	Module
Supplier Device Package:	SP3F

Please confirm the specifications of the products when ordering.
