EPC2105

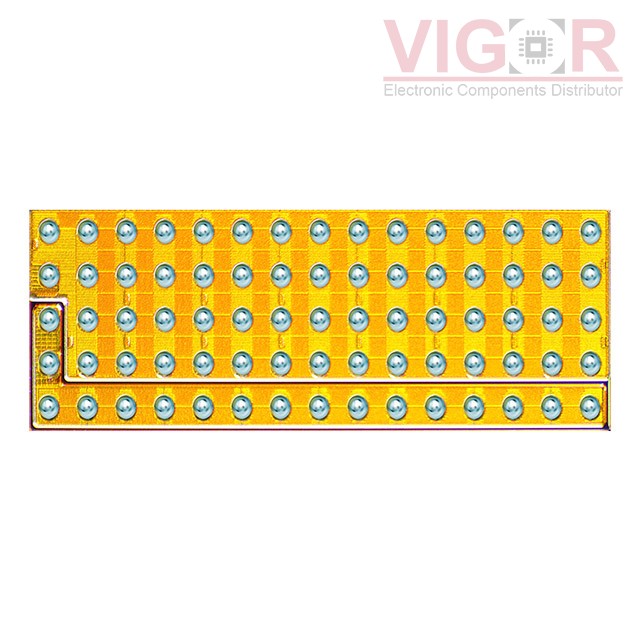

Image is for reference,
please contact us to get the real picture

Part No :: EPC2105

Manufacturer: EPC

Description: GAN TRANS ASYMMETRICAL HALF BRID

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: EPC2105 PDF

Availability: 554 pieces

Unit Price: ~~$7.14000~~

Current price of EPC2105 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

EPC2105 Specifications

Type	Description
Series:	eGaN®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	2 N-Channel (Half Bridge)
FET Feature:	GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss):	80V
Current - Continuous Drain (Id) @ 25°C:	9.5A, 38A
Rds On (Max) @ Id, Vgs:	14.5mOhm @ 20A, 5V, 3.4mOhm @ 20A, 5V
Vgs(th) (Max) @ Id:	2.5V @ 2.5mA, 2.5V @ 10mA
Gate Charge (Qg) (Max) @ Vgs:	2.5nC @ 5V, 10nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds:	300pF @ 40V, 1100pF @ 40V
Power - Max:	-
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	Die
Supplier Device Package:	Die
