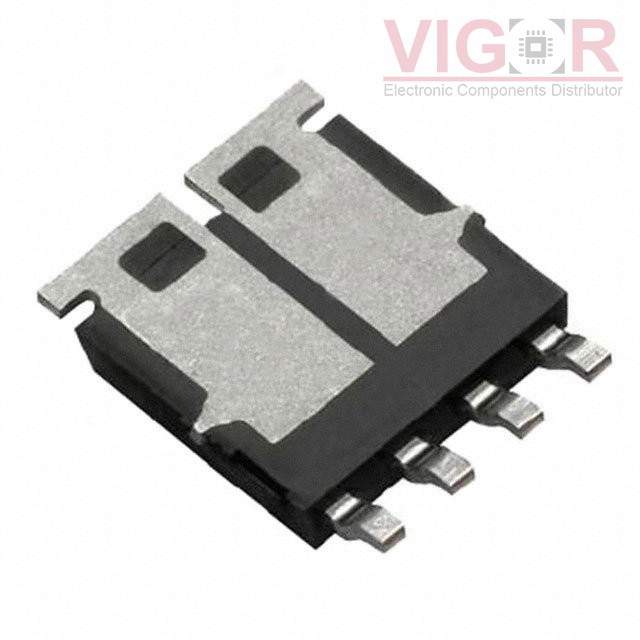

SQJ570EP-T1_GE3

Part No :: SQJ570EP-T1_GE3

Manufacturer: Vishay / Siliconix

VIGOR # :: 2979240

Description: MOSFET N/P-CH 100V POWERPAK SO8

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: SQJ570EP-T1_GE3 PDF

Current price of SQJ570EP-T1_GE3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SQJ570EP-T1_GE3 Specifications

Type	Description
Series:	Automotive, AEC-Q101, TrenchFET®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N and P-Channel
FET Feature:	Standard
Drain to Source Voltage (Vdss):	100V
Current - Continuous Drain (Id) @ 25°C:	15A (Tc), 9.5A (Tc)
Rds On (Max) @ Id, Vgs:	45mOhm @ 6A, 10V, 146mOhm @ 6A, 10V
Vgs(th) (Max) @ Id:	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	20nC @ 10V, 15nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	650pF @ 25V, 600pF @ 25V
Power - Max:	27W
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	PowerPAK® SO-8 Dual
Supplier Device Package:	PowerPAK® SO-8 Dual

Please confirm the specifications of the products when ordering.
