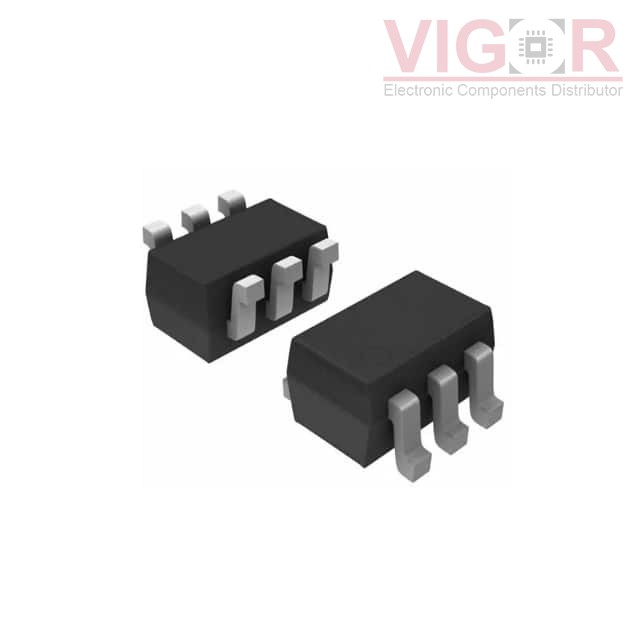

RM2520ES6

Part No :: RM2520ES6

Manufacturer: Rectron USA

VIGOR # :: 2979268

Description: MOSFET N&P-CH 25/20V SOT23-6

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: RM2520ES6 PDF

Current price of RM2520ES6 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

RM2520ES6 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
FET Type:	N and P-Channel
FET Feature:	Standard
Drain to Source Voltage (Vdss):	25V, 20V
Current - Continuous Drain (Id) @ 25°C:	1.1A (Ta), 800mA (Ta)
Rds On (Max) @ Id, Vgs:	1.2Ohm @ 500mA, 4.5V, 600mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id:	1V @ 250µA, 1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	1.8pC @ 4.5V, 0.6pC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	87pF @ 10V, 30pF @ 10V
Power - Max:	800mW (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	SOT-23-6
Supplier Device Package:	SOT-23-6
