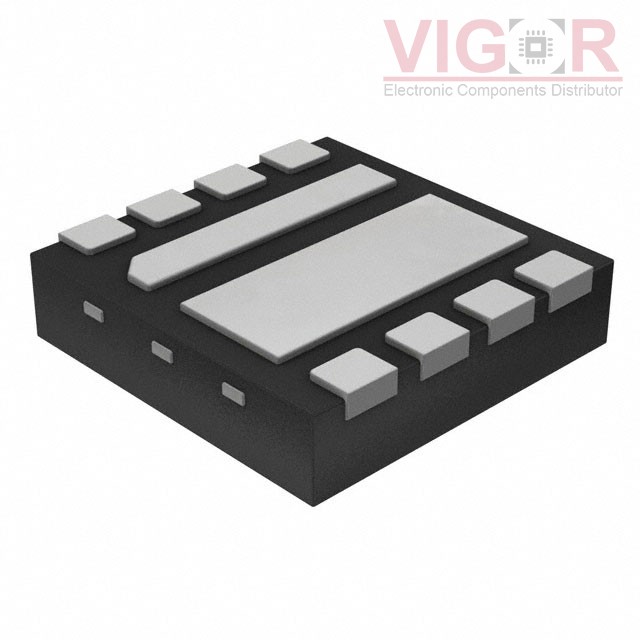

BSZ0909NDXTMA1

Part No :: BSZ0909NDXTMA1

Manufacturer: IR (Infineon Technologies)

VIGOR # :: 2979359

Description: MOSFET 2N-CH 30V 20A WISON-8

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: BSZ0909NDXTMA1 PDF

Current price of BSZ0909NDXTMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

BSZ0909NDXTMA1 Specifications

Type	Description
Series:	OptiMOS™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	2 N-Channel (Dual)
FET Feature:	Logic Level Gate, 4.5V Drive
Drain to Source Voltage (Vdss):	30V
Current - Continuous Drain (Id) @ 25°C:	20A (Tc)
Rds On (Max) @ Id, Vgs:	18mOhm @ 9A, 10V
Vgs(th) (Max) @ Id:	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	2.6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	360pF @ 15V
Power - Max:	17W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-PowerVDFN
Supplier Device Package:	PG-WISON-8
