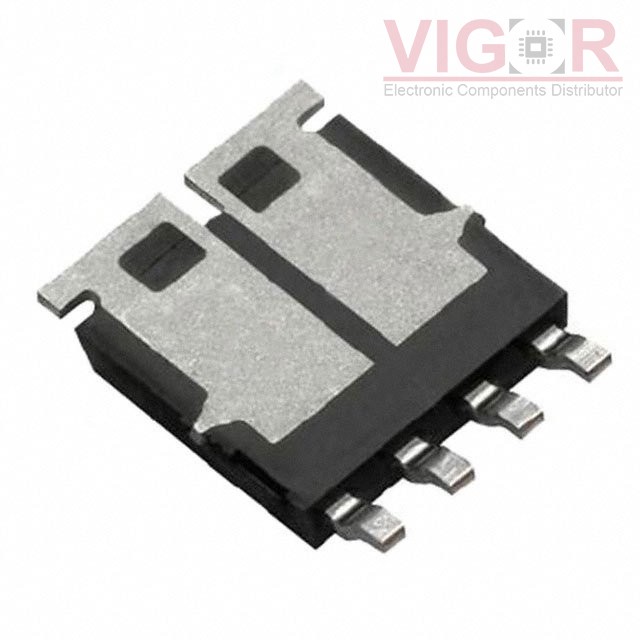

SQJ560EP-T1_GE3

Part No :: SQJ560EP-T1_GE3

Manufacturer: Vishay / Siliconix

VIGOR # :: 2979367

Description: MOSFET DUAL N P CH 60V PPAK SO-8

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: SQJ560EP-T1_GE3 PDF

Current price of SQJ560EP-T1_GE3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SQJ560EP-T1_GE3 Specifications

Type	Description
Series:	Automotive, AEC-Q101, TrenchFET®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N and P-Channel
FET Feature:	Standard
Drain to Source Voltage (Vdss):	60V
Current - Continuous Drain (Id) @ 25°C:	30A (Tc), 18A (Tc)
Rds On (Max) @ Id, Vgs:	12mOhm @ 10A, 10V, 52.6mOhm @ 10A, 10V
Vgs(th) (Max) @ Id:	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	30nC @ 10V, 45nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	1650pF @ 25V
Power - Max:	34W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	PowerPAK® SO-8 Dual
Supplier Device Package:	PowerPAK® SO-8 Dual
