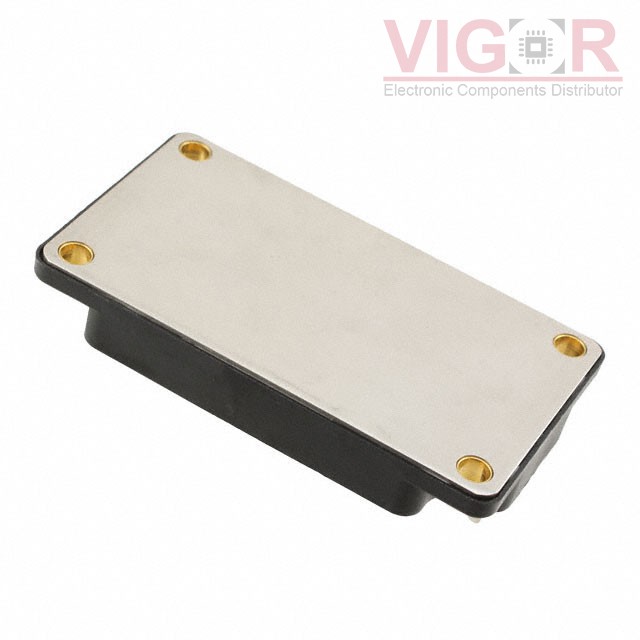

APTM100H18FG

Part No :: APTM100H18FG

Manufacturer: Roving Networks / Microchip Technology

VIGOR # :: 2979411

Description: MOSFET 4N-CH 1000V 43A SP6

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: APTM100H18FG PDF

Current price of APTM100H18FG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

APTM100H18FG Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
FET Type:	4 N-Channel (H-Bridge)
FET Feature:	Standard
Drain to Source Voltage (Vdss):	1000V (1kV)
Current - Continuous Drain (Id) @ 25°C:	43A
Rds On (Max) @ Id, Vgs:	210mOhm @ 21.5A, 10V
Vgs(th) (Max) @ Id:	5V @ 5mA
Gate Charge (Qg) (Max) @ Vgs:	372nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	10400pF @ 25V
Power - Max:	780W
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	SP6
Supplier Device Package:	SP6

Please confirm the specifications of the products when ordering.
