BSM250D17P2E004

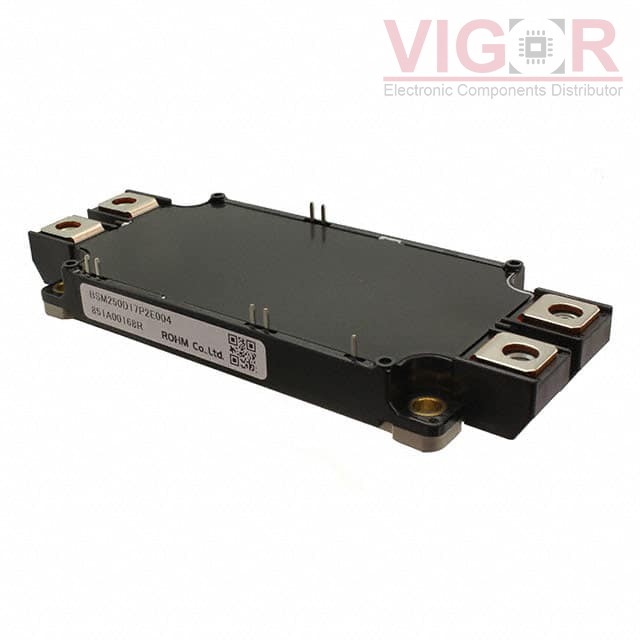

Image is for reference,
please contact us to get the real picture

Part No :: BSM250D17P2E004

Manufacturer: ROHM Semiconductor

Description: HALF BRIDGE MODULE CONSISTING OF

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: BSM250D17P2E004 PDF

Availability: 1 pieces

Unit Price: ~~$984.00000~~

Current price of BSM250D17P2E004 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

BSM250D17P2E004 Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
FET Type:	2 N-Channel (Half Bridge)
FET Feature:	Silicon Carbide (SiC)
Drain to Source Voltage (Vdss):	1700V (1.7kV)
Current - Continuous Drain (Id) @ 25°C:	250A (Tc)
Rds On (Max) @ Id, Vgs:	-
Vgs(th) (Max) @ Id:	4V @ 66mA
Gate Charge (Qg) (Max) @ Vgs:	-
Input Capacitance (Ciss) (Max) @ Vds:	30000pF @ 10V
Power - Max:	1800W (Tc)
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	Module
Supplier Device Package:	Module

Please confirm the specifications of the products when ordering.
