NDH8304P

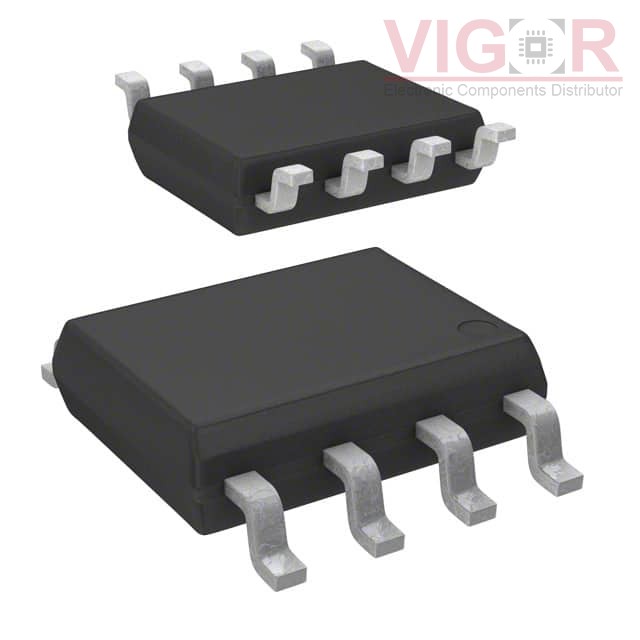

Image is for reference,
please contact us to get the real picture

Part No :: NDH8304P

Manufacturer: VIGOR

Description: SMALL SIGNAL P-CHANNEL MOSFET

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: NDH8304P PDF

Availability: 78203 pieces

Unit Price: ~~$0.64000~~

Current price of NDH8304P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NDH8304P Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
FET Type:	2 P-Channel (Dual)
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	2.7A
Rds On (Max) @ Id, Vgs:	70mOhm @ 2.7A, 4.5V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	23nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	865pF @ 10V
Power - Max:	800mW
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-LSOP (0.130", 3.30mm Width)
Supplier Device Package:	SuperSOT™-8

Please confirm the specifications of the products when ordering.
