SQJ504EP-T1_GE3

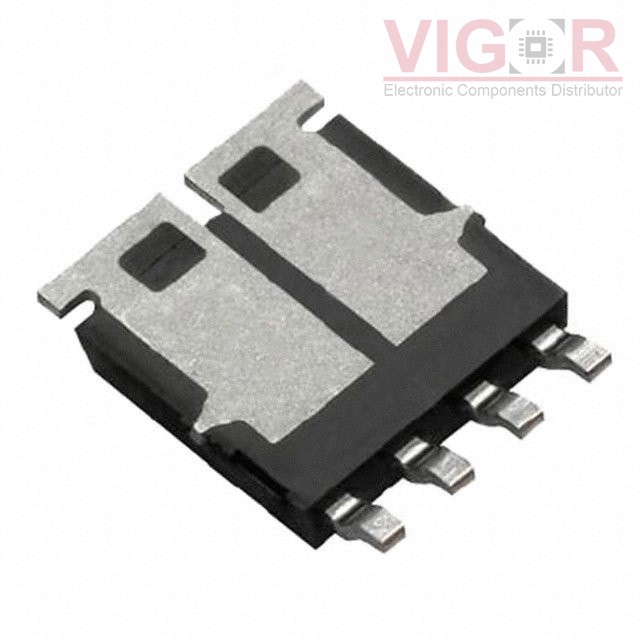

Image is for reference,
please contact us to get the real picture

Part No :: SQJ504EP-T1_GE3

Manufacturer: Vishay / Siliconix

Description: MOSFET N/P CHAN 40V POWERPAK SO-

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: SQJ504EP-T1_GE3 PDF

Availability: 7970 pieces

Unit Price: ~~$1.39000~~

Current price of SQJ504EP-T1_GE3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SQJ504EP-T1_GE3 Specifications

Type	Description
Series:	Automotive, AEC-Q101, TrenchFET®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N and P-Channel
FET Feature:	Standard
Drain to Source Voltage (Vdss):	40V
Current - Continuous Drain (Id) @ 25°C:	30A (Tc)
Rds On (Max) @ Id, Vgs:	7.5mOhm @ 8A, 10V, 17mOhm @ 8A, 10V
Vgs(th) (Max) @ Id:	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	30nC @ 10V, 85nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	1900pF @ 25V, 4600pF @ 25V
Power - Max:	34W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	PowerPAK® SO-8 Dual
Supplier Device Package:	PowerPAK® SO-8 Dual
