TSM150NB04DCR RLG

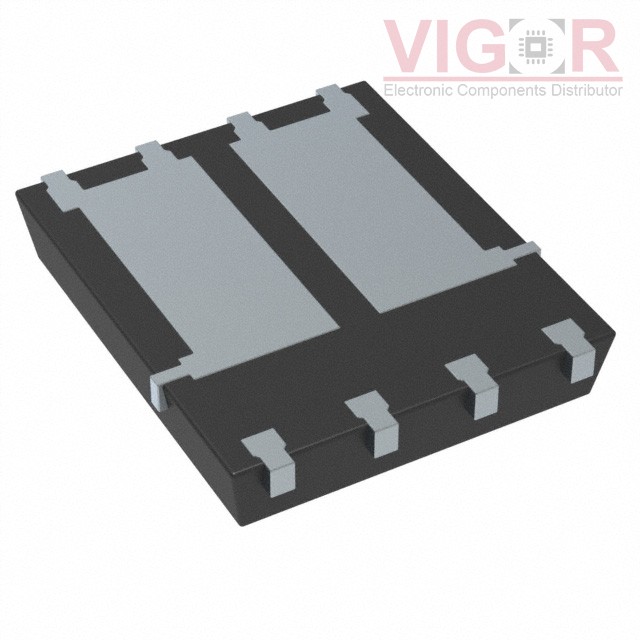

Image is for reference,
please contact us to get the real picture

Part No :: TSM150NB04DCR RLG

Manufacturer: TSC (Taiwan Semiconductor)

Description: DUAL N-CHANNEL POWER MOSFET 40V,

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: TSM150NB04DCR RLG PDF

Availability: 5000 pieces

Unit Price: ~~$1.07000~~

Current price of TSM150NB04DCR RLG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TSM150NB04DCR RLG Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	2 N-Channel (Dual)
FET Feature:	Standard
Drain to Source Voltage (Vdss):	40V
Current - Continuous Drain (Id) @ 25°C:	8A (Ta), 38A (Tc)
Rds On (Max) @ Id, Vgs:	15mOhm @ 8A, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	18nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	1132pF @ 20V
Power - Max:	2W (Ta), 40W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-PowerTDFN
Supplier Device Package:	8-PDFN (5x6)
