IPG20N06S2L50AATMA1

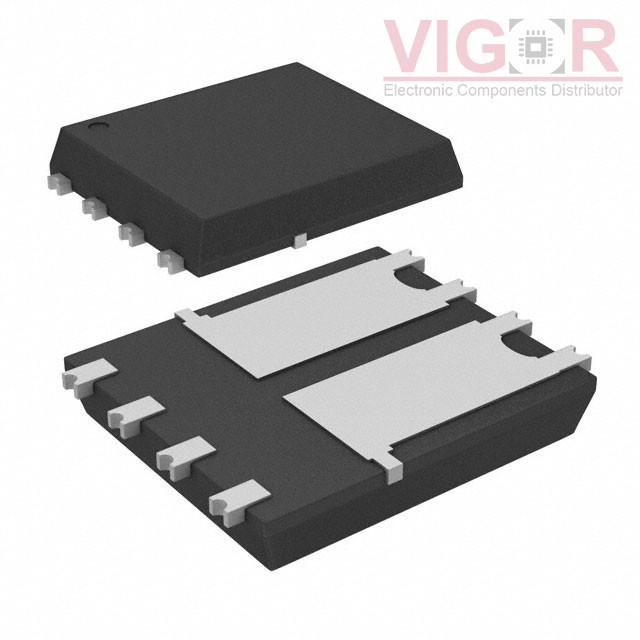

Image is for reference,
please contact us to get the real picture

Part No :: IPG20N06S2L50AATMA1

Manufacturer: IR (Infineon Technologies)

Description: MOSFET 2N-CH 55V 20A 8TDSON

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: IPG20N06S2L50AATMA1 PDF

Availability: 0 pieces

Unit Price: ~~$0.51240~~

Current price of IPG20N06S2L50AATMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IPG20N06S2L50AATMA1 Specifications

Type	Description
Series:	Automotive, AEC-Q101, OptiMOS™
Package:	Tape & Reel (TR)
Part Status:	Active
FET Type:	2 N-Channel (Dual)
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	55V
Current - Continuous Drain (Id) @ 25°C:	20A
Rds On (Max) @ Id, Vgs:	50mOhm @ 15A, 10V
Vgs(th) (Max) @ Id:	2V @ 19µA
Gate Charge (Qg) (Max) @ Vgs:	17nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	560pF @ 25V
Power - Max:	51W
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount, Wettable Flank
Package / Case:	8-PowerVDFN
Supplier Device Package:	PG-TDSON-8-10
