FDMA1024NZ

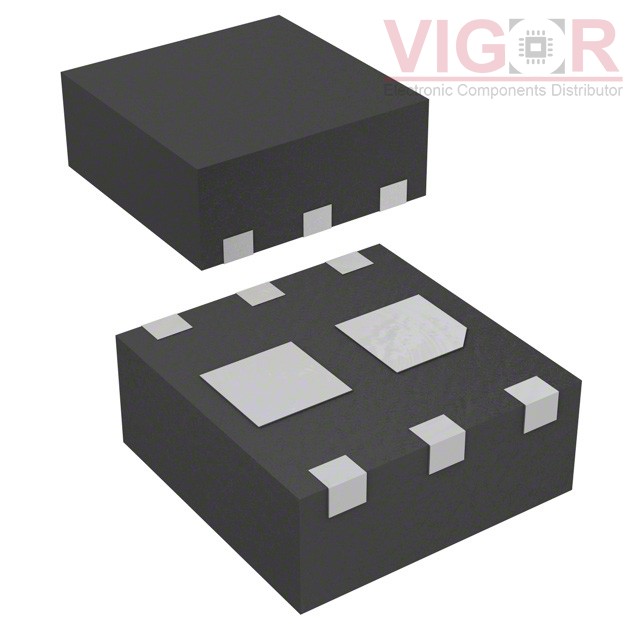

Image is for reference,
please contact us to get the real picture

Part No :: FDMA1024NZ

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET 2N-CH 20V 5A 6MICROFET

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: FDMA1024NZ PDF

Availability: 79891 pieces

Unit Price: ~~$0.91000~~

Current price of FDMA1024NZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FDMA1024NZ Specifications

Type	Description
Series:	PowerTrench®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	2 N-Channel (Dual)
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	5A
Rds On (Max) @ Id, Vgs:	54mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	7.3nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	500pF @ 10V
Power - Max:	700mW
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	6-VDFN Exposed Pad
Supplier Device Package:	6-MicroFET (2x2)
