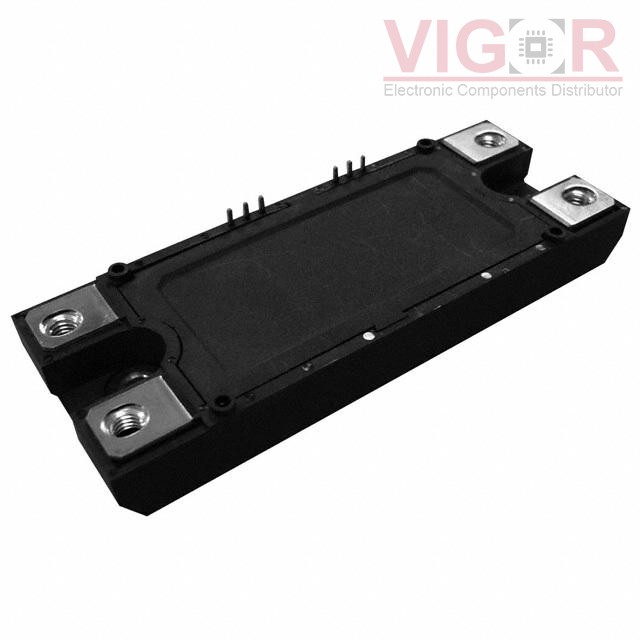

BSM120D12P2C005

Image is for reference,
please contact us to get the real picture

Part No :: BSM120D12P2C005

Manufacturer: ROHM Semiconductor

Description: MOSFET 2N-CH 1200V 120A MODULE

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: BSM120D12P2C005 PDF

Availability: 33 pieces

Unit Price: ~~$382.97000~~

Current price of BSM120D12P2C005 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

BSM120D12P2C005 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
FET Type:	2 N-Channel (Half Bridge)
FET Feature:	Silicon Carbide (SiC)
Drain to Source Voltage (Vdss):	1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C:	120A (Tc)
Rds On (Max) @ Id, Vgs:	-
Vgs(th) (Max) @ Id:	2.7V @ 22mA
Gate Charge (Qg) (Max) @ Vgs:	-
Input Capacitance (Ciss) (Max) @ Vds:	14000pF @ 10V
Power - Max:	780W
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	-
Package / Case:	Module
Supplier Device Package:	Module
